mark49

i think shoud be PCI\VEN_1095&DEV_3114&SUBSYS_31141095 = "SI3114" PCI\VEN_1095&DEV_3114&SUBSYS_288610F1 = "SI3114"

VIA_RAID_V510A download: http://file2.mydrivers.com/board/VIA_RAID_V510A.zip and new ids added: id = "PCI\VEN_1106&DEV_3349","viamraid" id = "PCI\VEN_1106&DEV_0591","viamraid"

maybe CD burned failer

Realtek RTL8185 PCI/Cardbus 802.11g 54M Wireless LAN Network DriverVer = 07/20/2005,5.103.0720.2005 http://file2.mydrivers.com/net/realtek_rtl8185l_103.zip

DriverVer=03/31/2005, 1.2.3.1

@BTS, maybe i found the solution Through analyse \windows\setupapi.log files, i found the RANK relation between Compatible ID and HWID: normally comp.id 's rand is 0x200? , like when driver has NO whql sign ,then rand will be added with 0x8000 or more. so: While the part of PATA driver from NF v6.66/7.13 has NO WHQL sign , when on NF2/3 mobo GUI installation, system will chose MS's pciide.sys driver to PATA (no raid) device, because PCI\CC_0101 from "WINDOWS\inf\mshdc.inf" got high priority then NV's PATA driver! and to avoid BSOD after first rebooting on some NF3 mobo (esp. MSI K8N NEOxxx), i Add this to txtsetup.sif . then test passed ;; MSI K8N Neo2 Platinum nF3 250Gb PATA no Raid PCI\VEN_10DE&DEV_00E5&CC_0101 = "pciide" we can even add PCI\VEN_10DE&DEV_00??&CC_0101 for PATA device on all NF2 mobo , but by so far it seems v6.66/7.13 works good on NF2 mobo then older drivers. I have a idea : the part of PATA driver use the part of v6.53, cause of it has WHQL, the part of SATA/SATA RAID drivers use the part of v6.66 and 7.13, del 6.66 and 7.13 's PATA folders . but i dont konw if 6.53's pata driver is good for NF2 , and when PATA RAID on NF2/3 mobo which one driver will be installed . nvatabus.sys of v6.53 + nvraid.sys of v6.66/7.13 or the same version ?? only can guess when SATA RAID on NF4,will be 6.66 or 7.13 http://msdn.microsoft.com/library/default....6bb2223.xml.asp

which one driver?

@BTS , i add PCI\VEN_10DE&DEV_00E5&SUBSYS_02501462&REV_A2 = "nvbus5" into txtsetup.sif. and copy nvatabus.sys from v5.10 to \i386 as the name of nvbus5.sys . but it does NOT work , therefor i find another way to solve this problem (BSOD after first reboot) on the mobo

si3124 04/26/2005, 1.3.0.16 WHQL http://www.siliconimage.com/docs/3124_x86_..._logo_13016.zip no HWIDS change ----------------------------------------------------------------------------------------- si3124r5 03/31/2005, 1.2.3.1 WHQL http://file.mydrivers.com/board/siliconima...24_1231raid.zip add hwid to txtsetup.sif (also .sys entry) PCI\VEN_1095&DEV_3124&SUBSYS_71241095 = "si3124r5" ----------------------------------------------------------------------------------------- @BTS ,a Q: in si3xx4 txtsetup.oem Is it necessary copy SiWinAcc.sys to \i386 and add SiWinAcc.sys = 1,,,,,,4_,4,1,,,1,4 to txtsetup.sif ? or in other words: is SiWinAcc.sys necessary in TXTmode and half part of GUImode?

si3114 update: http://www.siliconimage.com/support/suppor...&ctid=2&osid=4& si3114 05/05/2005, 1.2.0.5 WHQL http://www.siliconimage.com/docs/3114_x86_...e_logo_1205.zip si3114r 11/02/2004, 1.0.0.8 http://www.siliconimage.com/docs/3114_x86_..._raid_1008b.zip si3114r5 03/31/2005, 1.2.3.1 WHQL http://file.mydrivers.com/board/siliconima...14_raid1233.zip txtsetup.sif PCI\VEN_1095&DEV_3114&SUBSYS_31141095 = "si3114" PCI\VEN_1095&DEV_3114&SUBSYS_B0021458 = "si3114" PCI\VEN_1095&DEV_3114&SUBSYS_003915D4 = "si3114" PCI\VEN_1095&DEV_3114&SUBSYS_31148086 = "si3114" PCI\VEN_1095&DEV_3114&SUBSYS_61141095 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_288510F1 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_047AA0A0 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_0478A0A0 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_0479A0A0 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_90181695 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_F642270F = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_100415BD = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_12501462 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_13101462 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_15601462 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_16101462 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_B0031458 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_1B711019 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_61141071 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_003515D4 = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_1025147B = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_1001147B = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_130A147B = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_1C0A147B = "si3114r" ;;PCI\VEN_1095&DEV_3114&SUBSYS_81361043 = "si3114r" //use 3114r5's driver PCI\VEN_1095&DEV_3114&SUBSYS_2A1E103C = "si3114r" PCI\VEN_1095&DEV_3114&SUBSYS_71141095 = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_71148086 = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_81361043 = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_81671043 = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_902A1695 = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_310215BD = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_052FA0A0 = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_104A147B = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_104B147B = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_B0041458 = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_71001462 = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_71251462 = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_471015D5 = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_0C25105B = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_0CC1105B = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_0CCA105B = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_0CCB105B = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_0CCC105B = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_0CCD105B = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_0CCE105B = "si3114r5" PCI\VEN_1095&DEV_3114&SUBSYS_0CCF105B = "si3114r5"

HighPoint RocketRAID 222x SATA from: 05/18/2005, 1.01 update to : 07/11/2005, 1.02 link: http://file5.mydrivers.com/files/board/hig...2220_drv102.zip

HighPoint RocketRAID 182x SATA from 01/27/2005, 1.1.6.127 update to : 08/01/2005, 1.1.7.801 link: http://file.mydrivers.com/board/highpoint_rr1820a_117.zip

@Chertoianov, pls use this app http://www.btsunattended.net/Downloads/save_hwids.exe to list your hardware's ids

a A8N-SLI Deluxe NF4 SLI 939 , CK804, SATA RAID0 all OK with v7.13

EPOX 8RDA3+，nForce2Ultra400(nForce2SPP)+MCP , SATA disc AU13，nForce2Ultra400(nForce2SPP)+MCP-T , no SATA/RAID At last all OK with v7.13 driver, and with older driver ,such v6.53 ,v5.1... , many problem , even BSOD after first reboot. not test v6.66

a MSI K8N Neo2-F , nVIDIA nForce3 ULTRA SATA disc,BSOD after first reboot with v7.13 F6 load driver (i don't know which one) ,passed

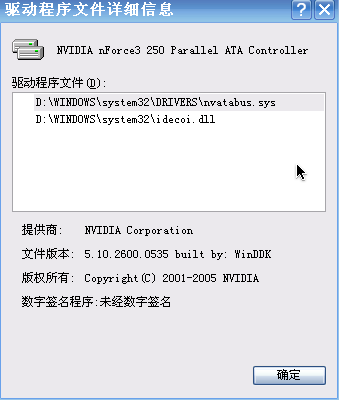

but MSI K8N NEO2 Platium , nForce3 250Gb chipset too. (noif) TXTmode: BSOD after first reboot with v7.13 , GUImode: manuall install v6.66 or v5.10 app , passed. strange..... and this pc not use SATA,not use RAID ,only PATA . the pata driver from v6.66 and v7.13 all non-WHQL ,maybe this.... hwid: PCI\VEN_10DE&DEV_00E5&SUBSYS_02501462&REV_A2\3&13C0B0C5&0&40: NVIDIA nForce3 250 Parallel ATA Controller

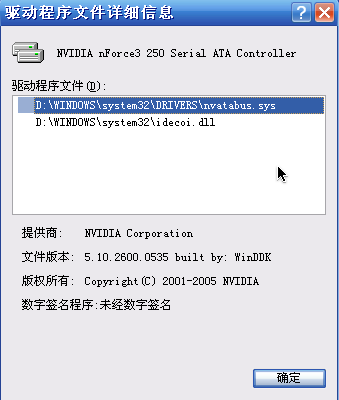

EPOX 8KDA3I , nf3 250 , PATA disc no raid TXTmode /GUi mode all passed , with v7.13 PCI\VEN_10DE&DEV_00E3&SUBSYS_100C1695&REV_A2\3&13C0B0C5&0&50: NVIDIA nForce3 250 Serial ATA Controller PCI\VEN_10DE&DEV_00E5&SUBSYS_100C1695&REV_A2\3&13C0B0C5&0&40: NVIDIA nForce3 250 Parallel ATA Controller (shasha)

Which ones are that? Besides the nForce 2 mobo's. EDIT: topic moved to DriverPack MassStorage subforum. ← epox 9nda3j NF3 Ultra is OK (binlan)

some new HWIDS is added .

But i just think that's not the reason. because at that period (first rebooting) TXTmode , driver filed don't need to certified ,or say, txtmode need no CAT file. and we don't copy xx.CAT file to \i386 folder at least ,not all nf mobo got BSOD after first reboot

my friend has MSI K8N Neo2 Platinum( nForce3 250Gb ) ,and got BSOD (after first reboot)too with nf v7.13 . and with v5.10 is ok. maybe this mobo only accept v5.10, and maybe we can only and seperately use nvatabus.sys (from nf v5.10) in Txtmode, and modified .inf for GUI ( D\M\N) mode. the PATA ide for this mobo is : ,PCI\VEN_10DE&DEV_00E5&SUBSYS_02501462&REV_A2 here ,a EPoX 8KDA7I ,nForce3-250 too ,auch got BSOD http://www.msfn.org/board/index.php?showtopic=51244&st=10 post#20

DriverPack_Sound_A_V507\D\S\R\ file ALCXWDM.SYS is missing,but Alcxwdm?.inf need this file SoundMan.exe is missing too

in i386 there is NVATA.SY_ ,but in txtsetup.sif there's on entry about NVATA.SY_ ..

or add xx.dll to i386 folder and edit i386\txtsetup.sif [SourceDisksFiles] xxxx.dll = 1,,,,,,,2,0,0 when os setup, system will automatic copy xxx.dll to %systemroot%\system32
