Disc drive unable to eject.

- - - - -

  • Please log in to reply
10 replies to this topic

#1
MillenX

MillenX

    Member

  • Member
  • PipPip
  • 178 posts
  • Joined 17-December 07
Everything's ok except that the disc tray stucks.
The samsung drive has been good and suddenly it stucks one day and from that onwards.
since then whenever i wanna use i have to press the open button and poke into the pin hole, only then the tray comes out.

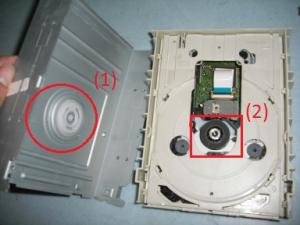

Disconnecting all the plugs to it, i opened up the drive and believed that (1) and (2) toghether have been the culprit.
(1) - The white color circle
(2) - The black color circle (that pass thru the centre of CD or DVD and turn the disc)

don't know the parts' name... if you know please tell me
Attached File  CIMG0841.JPG   75.74KB   5 downloads
Casing and inner part

Attached File  CIMG0834.JPG   53.17KB   2 downloads
Casing

When I covered the inner part of the drive with the casing, I peeped into the inner part, and
found that (1), with a magnet in it, and (2) are sticking together, apparently held by magnetic force. (When the tray is inside)

In normal circumstance, when the open button is pressed, thru a mechanism the entire part where (2) on is lowered down from the tray and (1). Then the tray ejects. (this is observed without the casing)

When I put back the casing, the (1) on the casing sticks with (2) -- this is normal. However, when the open button is pressed, they still stick together, due to undue magnetic attraction, causing the entire part where (2) on unable to be lowered down. The tray tries but is unable to eject, making sound like something stucks inside. -- This is the cause of failure of ejection.
At this instant, when i lift the casing to overcome the magnetic force, the tray comes out.

Can someone suggest how to fix this?
I would be grateful if a video clip is included if necessary...
Thx beforehand :thumbup

Edited by MillenX, 04 November 2009 - 05:32 AM.



How to remove advertisement from MSFN

#2
jaclaz

jaclaz

    The Finder

  • Developer
  • 14,654 posts
  • Joined 23-July 04
  • OS:none specified
  • Country: Country Flag
CD/dvd drives can be made in very different ways.

Basically the mechanism that lowers #2 has not enough force to work when the retaining action of the magnet is added.

Usually (but it may not be the case of your particular CD/DVD drive) it is due to some dirt (or clogged with dirt or simply "hardened" grease/lubricant) somewhere in the sliding parts.

As well ususally completely and thoroughfully cleaning ALL sliding parts and adding a very minimal amount of lubricant is enough to make the drive functional again.

In some cases there is wear that produces some dents in the sliding parts that need to be smoothed off with very fine sand paper or the like AND polished.

The good ol' CD repair FAQ gives some hints:
http://www.repairfaq.org/sam/cdfaq.htm

jaclaz

#3
puntoMX

puntoMX

    n00b of Masters and Vice Versa

  • Super Moderator
  • 4,852 posts
  • Joined 28-June 04
  • OS:Windows 8.1 x64
  • Country: Country Flag
Just a quick post: try to reverse the metal part that is shown in photo 2, that should fix the problem, done it many times before and I think it's posible with that model as well. Else you can try to de-magnetize the parts or just keep a CD in. I hope that I have time a bit later to go into detail ;).

#4
MillenX

MillenX

    Member

  • Member
  • PipPip
  • 178 posts
  • Joined 17-December 07
Thanks jaclaz for the good link - http://www.repairfaq.org/sam/cdfaq.htm
Thanks for the advices

I think it is due to some dirt on the parts responsible for lifting and lowering #2, as the problem only occurs some time after buying.
In case not, im also seeking ways to DEMAGNETIZE #1. Interesting.

Thanks guys!
Googling...

#5
jaclaz

jaclaz

    The Finder

  • Developer
  • 14,654 posts
  • Joined 23-July 04
  • OS:none specified
  • Country: Country Flag
Visual example:
http://www.llamma.co...on_dvd_tray.htm


jaclaz

#6
MillenX

MillenX

    Member

  • Member
  • PipPip
  • 178 posts
  • Joined 17-December 07
Thanks! Solved.

#7
jaclaz

jaclaz

    The Finder

  • Developer
  • 14,654 posts
  • Joined 23-July 04
  • OS:none specified
  • Country: Country Flag

Thanks! Solved.


What was it?
How it was solved?
(just out of curiosity.

jaclaz

#8
MillenX

MillenX

    Member

  • Member
  • PipPip
  • 178 posts
  • Joined 17-December 07
oh, a surprise to me too. The pics are taken at the second disassembly. After reassembling, it became fine just like that... an obliviously solved problem..

but the same problem is on another drive...

The tutorials from the links are great!

#9
jaclaz

jaclaz

    The Finder

  • Developer
  • 14,654 posts
  • Joined 23-July 04
  • OS:none specified
  • Country: Country Flag

oh, a surprise to me too. The pics are taken at the second disassembly. After reassembling, it became fine just like that... an obliviously solved problem..

but the same problem is on another drive...

The tutorials from the links are great!


I see that you are new to this, it's common practice. ;)


psychological warfare against stoopid hardware:
disassembling it a few times really scares it, but you may also want to have a mallet or large hammer handy and start singing something like "How would I love to smash this stoopid thingy with this large hammer I happen to have here" to the tune of your preferred song.

The effect is that usually things start working again .....:whistle:

A chainsaw has also proved to be a very good intimidating method, but it's a bit noisy and hardware won't fall for it if it isn't running. :(

:P

jaclaz

#10
MillenX

MillenX

    Member

  • Member
  • PipPip
  • 178 posts
  • Joined 17-December 07
hardware's living thing? hmm...
that says that i have to scare the other faulty drive
until it starts working

diassembling may make sth right again

#11
jaclaz

jaclaz

    The Finder

  • Developer
  • 14,654 posts
  • Joined 23-July 04
  • OS:none specified
  • Country: Country Flag

hardware's living thing? hmm...
that says that i have to scare the other faulty drive
until it starts working


Yep. :)
Shouting at hardware really hard sometimes helps, also ;):
http://www.msfn.org/...37-page-14.html

jaclaz
