A visual guide to 7Customizer


  • Please log in to reply
50 replies to this topic

#1
blue4603

blue4603

    7Customizer Developer

  • Developer
  • 276 posts
  • Joined 10-October 09
  • OS:Windows 7 x64
  • Country: Country Flag
Hi,

Since 7Customizer now has many features, I decided to make a guide.

Note: If you face problems in 7Customizer post it in the original thread here. Do not post it in this thread.

Recommended requirements:

1. Windows Vista or Windows 7 (32 bit or 64 bit)
2. WAIK for windows 7. Download it from here. You can use WAIK in any language (English,German,Italian .... etc).
3. A windows 7 installation source (32 bit or 64 bit)
4. .Net framework 3.5 if you use Windows Vista. Download it from here.
(Optional) 6. VirtualBox (to test the customized installation). Download from here.

Note: 7Customizer can be used in Windows XP. However, It will require additional steps but this is beyond the scope of this guide.

Steps:


1. Download 7Customizer from here
2. Extract the files. It is recommended to extract it to a folder which does not have white spaces
in this example I will extract it to e:\7Customizer

Posted Image

3. If you have a Windows 7 ISO, you can use Winrar or Ultraiso to extract the ISO to a folder. It is recommended extract it to a folder which does not have white spaces
in this example I will extract it to e:\win7

Posted Image

4. Start 7Customizer.exe. If prompted by UAC just choose allow.

Posted Image

5. Choose the path for dism and imagex and oscdimg first. It is located inside your WAIK installation(Usually C:\Program Files\Windows AIK\Tools).
If you are using a 32 bit Windows choose imagex and dism and oscdimg that are located in x86 folder inside the WAIK 7 installation
If you are using a 64 bit Windows choose imagex and dism and oscdimg that are located in amd64 folder inside the WAIK 7 installation

In this example I am using Windows 7 x86 (The windows that I am using not the one I am customizing)

Posted Image

6. Choose the installation path

7. Choose the edition you want to customize from the list and then press start.
In this example I chose Ultimate edition

Posted Image


8. In the languages tab you could integrate language packs. The language packs are .cab files downloaded from Microsoft website. (You could Google for them)
Note:If you have a language pack in a .exe file use exe2cab utility to convert it to cab file. Download from attachments
In this example I will integrate the Arabic language pack and the French.

Posted Image

9. In the updates tab you could integrate updates pack. The updates pack are .msu files downloaded from Microsoft website.

Posted Image

10. In the drivers tab you could integrate drivers. To integrate drivers you have three options:
a. integrate a driver using a .inf file.
b. integrate a driver using a folder that has driver files.
c. integrate drivers using a folder that has multiple drivers in multiple folders.To use this option check the "include subfolders" option and browse for the folder.
Note: You should check "include subfolders" first and then browse for the drivers folder

Posted Image

11. In the tweaks tab you could tweak some aspects of your installation. Choose your preferred tweaks.

Posted Image

12. In the services tab under the tweak tabs you could tweak services like disabling or setting them to manual. However some services depends on other services. If you select a service, its description and its dependencies(Services depends on this service and services needed by this service) will be displayed on the right side.
Services are colored depending on the start up type
1. Automatic is Green
2. Automatic delayed is Orange
3. Disabled is Red
4. Manual is Peach

Services are sortable by name or by start up type. To sort the services click on one of the column headers.

Posted Image

13. in the themes part you could integrate themes. The themes are .themepack files downloaded from the net.
In this example I have some themes which I downloaded from Microsoft (link).

Posted Image

14.In the Wallpapers part you could integrate wallpapers. The wallpapers are .jpg or .bmp or .png or .gif files.

Posted Image


15.In the unattended part you could automate Windows setup. Fill in the appropriate information.
Note: If you leave some fields blank, setup might fail.
Note: The computer name should be no more than 15 characters in length. Do not use white spaces nor these characters:
/ \ * , . " @
Also apply these rules to user name. 7customizer will remove these characters when saving autounattend.xml

Note: If you chose skip user and you leave the user name empty, 7Customizer will set the user name to win7user.
Note: If you leave the computer name empty, 7Customizer will set the computer name to win7pc with a random number from 1 to 100 eg win7pc10, win7pc88 ... etc.


Posted Image

16. After you finish just go to the apply tab.
In the apply tab you could choose if you want to create an ISO file immediately after the execution process ends. Just check the option "Create ISO immediately" and enter a label for the ISO file and browse for the folder you want to save your ISO in.

(Optional) Before you start the execution you could save a preset file so you could load it later through the "Preset" menu.

After that click apply to start the execution.

Note: If you want to create an ISO file immediately after finishing the execution, check "Create ISO immediately" option an click apply.
Note: You could hide the execution window (The command window) and just display the done message by selecting the option "hide execution ..."

Posted Image




(Optional) Debug mode is used to pause the execution of the instructions when you apply your changes. This is used to solve problems.
So leave it unchecked.


Posted Image



Note: This will take time depending on what packs you integrate.


After the execution finishes, you will see a message that shows you that everything is done. Now you have a customized Windows 7 installation.

(Optional but highly recommended) Test the ISO in VirtualBox. If you are happy with your customized installation, then you could burn your ISO to a DVD and install it on your machine.

That concludes this guide.

I hope it was helpful for you. If you find bugs post them to the original thread here.

Regards

Attached Files


Edited by blue4603, 04 October 2011 - 10:41 AM.



How to remove advertisement from MSFN

#2
nice_guy75

nice_guy75

    Advanced Member

  • Member
  • PipPipPip
  • 406 posts
  • Joined 07-December 09

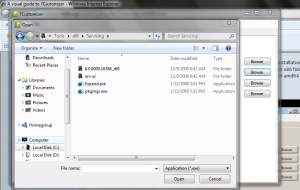

No DISM.exe in Servicing folder, what should I do now.

Attached File  DISM.PNG   163.71KB   657 downloads

#3
aldinof

aldinof
  • Member
  • 7 posts
  • Joined 21-April 08
  • OS:Windows 7 x86
  • Country: Country Flag
nice tutor bro.....
unfortunately i didn't find this tutor a few days ago...... :(

#4
Adadu

Adadu

    Newbie

  • Member
  • 42 posts
  • Joined 15-February 08
  • OS:Windows 7 x86
  • Country: Country Flag

No DISM.exe in Servicing folder, what should I do now.

Attached File  DISM.PNG   163.71KB   657 downloads


Use WAIK 7 for Windows 7, i got the same problem using WAIK Vista for Wind 7

WAIK 7 from microsoft
Enemy of Bill Gates

#5
aldinof

aldinof
  • Member
  • 7 posts
  • Joined 21-April 08
  • OS:Windows 7 x86
  • Country: Country Flag
no problem at all w/ WAIK win7

#6
premier69

premier69

    premier69

  • Member
  • PipPip
  • 121 posts
  • Joined 28-November 03
thanks for the guide!

Will there be any forthcoming options to remove garbage like media center and built in games, anything useless to down size the hdd footprint of the eventual install?

#7
stobbepe

stobbepe
  • Member
  • 1 posts
  • Joined 06-January 10
Is there a way to change the default location for the users directory from C:\ to D:\?

Thanks,

#8
grabben

grabben

    -Grabben

  • Member
  • PipPipPipPip
  • 602 posts
  • Joined 20-December 09
  • OS:Windows 7 x64
  • Country: Country Flag

thanks for the guide!

Will there be any forthcoming options to remove garbage like media center and built in games, anything useless to down size the hdd footprint of the eventual install?


Why dont you actually take a look in the original thread for 7C ?


Is there a way to change the default location for the users directory from C:\ to D:\?

Thanks,


Why are you asking that in this thread?

This is only a visual guide to 7C?

#9
Kalabaza

Kalabaza

    Newbie

  • Member
  • 25 posts
  • Joined 29-December 05
Hello, I'm going to make an installation with this tool. But just found a couple of mistakes in some text.

In tweaks in start menu the computer has defualt in the value, and in one registry it says SPP Notification SService and another one says Windows Connect Now - Config Registrar. Just a couple of esthetically details.

About the program, I have to cancel the process in the middle of the integration of a language pack and after that try to redo the process but there was an error: unable to access the image... What can I do in this case?

UPDATE: After doing the process againg and deleting the folder of the tool I manage to get it in working condition again.

Edited by Kalabaza, 10 January 2010 - 10:09 PM.


#10
equancy

equancy
  • Member
  • 1 posts
  • Joined 20-February 10
  • OS:95
  • Country: Country Flag
Whatever I've done...
I can't set default language on windows 7 Enterprise X64.
It's allways set en-US and mine languge isn't in the list on setup screen, there is only english.
I've tried both of : Vlite and 7customizer but won't happend.
anybody has an idea about why?

Edited by equancy, 28 February 2010 - 07:20 AM.


#11
Adadu

Adadu

    Newbie

  • Member
  • 42 posts
  • Joined 15-February 08
  • OS:Windows 7 x86
  • Country: Country Flag
Hi guys, I hope someone can help me with my problem. I get an error when i try to indicate my source folder.


=== 7Customizer Started===
7Customizer verion: 0.4.0a
7Customizer path: D:\7Customizer\7Customizer.exe
Current directory: D:\7Customizer
OS: Microsoft Windows NT 6.1.7600.0
OS architecture: x86
Work folder found: True
Mount folder found: True
Extract utility found: True
Configuration file found: True
bootorder.txt file found: True
Boot sector file found: True
Elevated: True
Getting drive info
Free space: 85,5070381164551 GB
Getting drive info: Done
Saved Imagex path: C:\Program Files\Windows AIK\Tools\x86\imagex.exe
Saved DISM path: C:\Program Files\Windows AIK\Tools\x86\Servicing\Dism.exe
Saved odcdimg path: C:\Program Files\Windows AIK\Tools\x86\oscdimg.exe
Windows source path selected
Sources folder found
install.wim found
install.wim size: 1121 MB
Added: "C:\Program Files\Windows AIK\Tools\x86\imagex.exe">work\testimagex.txt
Testing imagex
Imagex result begin:
Imagex result file created.

ImageX Tool for Windows
Copyright © Microsoft Corp. All rights reserved.
Version: 6.1.7600.16385

Imagex result end.
Added: "C:\Program Files\Windows AIK\Tools\x86\Servicing\Dism.exe">work\testdism.txt
Testing dism
dism result begin:

Deployment Image Servicing and Management tool
Version: 6.1.7600.16385


dism result end.
added: "C:\Program Files\Windows AIK\Tools\x86\imagex.exe" /XML /info "D:\seven\sources\install.wim">work\imagesinfo.xml
Starting imagex
Imagex created imagesinfo.xml Successfully
Reading images information from imagesinfo.xml
First 5 lines of imagesinfo.xml
<WIM>
<TOTALBYTES>1176050831</TOTALBYTES>
<IMAGE INDEX="1">
<NAME>Windows 7 Ultimate</NAME>
<FLAGS>Ultimate</FLAGS>
Number of Available Images: 1
Reading image indiceis
Reading image displaynames
Reading image names
Reading image architectures
Reading image edition IDs
Unexpected Error: Object reference not set to an instance of an object.
at _7Customizer.Form1.selectImagePathBtn_Click(Object sender, EventArgs e)


I tryed to start 7Customiser in C:\ and in D:\ also, i get the same error. Can you help me and tell me what i did wrong?


Posted Image


Thank you,
Adadu
Enemy of Bill Gates

#12
nice_guy75

nice_guy75

    Advanced Member

  • Member
  • PipPipPip
  • 406 posts
  • Joined 07-December 09
I guess you must be knowing that but just reminding you, there shouldn't be any spaces in the entire path of the soruce folder.

#13
Adadu

Adadu

    Newbie

  • Member
  • 42 posts
  • Joined 15-February 08
  • OS:Windows 7 x86
  • Country: Country Flag

I guess you must be knowing that but just reminding you, there shouldn't be any spaces in the entire path of the source folder.

It's very odd, but last time when i tryed to use that program, it woked. Now... i don't know where i go wrong... And I don't use any spaces... it's c:\seven or d:\seven
Enemy of Bill Gates

#14
myselfidem

myselfidem

    Member

  • Member
  • PipPipPipPipPipPipPipPip
  • 2,559 posts
  • Joined 06-January 10
  • OS:Windows 7 x64
  • Country: Country Flag
@Adadu

I will try to give you some help.

This post is only for read the "7Customizer visual guide". Made by Blue.

Return, please to the topic: "7 Customizer a replacement for vlite for windows 7"

http://www.msfn.org/...-for-windows-7/

And see my answer, thank you.

Edited by myselfidem, 17 April 2010 - 09:46 AM.

For Windows 7 OS: SetProductKey.rar (fr-FR/en-US. Integrate keys).

#15
Adadu

Adadu

    Newbie

  • Member
  • 42 posts
  • Joined 15-February 08
  • OS:Windows 7 x86
  • Country: Country Flag

@Adadu

I will try to give you some help.

This post is only for read the "7Customizer guide Using v0.3.3 8" Jan.2009. Made by blue.

Return, please to the topic: "7 Customizer a replacement for vlite for windows 7"

http://www.msfn.org/...-for-windows-7/

And see my answer, thank you.


THANKS. I own you one.
Enemy of Bill Gates

#16
wymp

wymp
  • Member
  • 1 posts
  • Joined 15-April 10
  • OS:Windows 7 x64
  • Country: Country Flag
Greetings, I'm sort of new to this. Is there a way I can integrate Microsoft Office and other programs into the .iso file?

#17
myselfidem

myselfidem

    Member

  • Member
  • PipPipPipPipPipPipPipPip
  • 2,559 posts
  • Joined 06-January 10
  • OS:Windows 7 x64
  • Country: Country Flag

Greetings, I'm sort of new to this. Is there a way I can integrate Microsoft Office and other programs into the .iso file?

Hello wymp, :rolleyes:

With 7Customizer, you can use RunOneEx method or also use WPI (Windows Post Install Wizard) for example:
http://www.msfn.org/...wizard-f93.html

Please, send your post at the topic:
http://www.msfn.org/...7-page-820.html

You can also find help here for silent install:
http://www.msfn.org/...stalls-f80.html

Regards
For Windows 7 OS: SetProductKey.rar (fr-FR/en-US. Integrate keys).

#18
nym-ph

nym-ph
  • Member
  • 4 posts
  • Joined 22-January 10
.

Edited by nym-ph, 24 April 2010 - 08:52 AM.


#19
Tamingsari2k

Tamingsari2k
  • Member
  • 4 posts
  • Joined 12-November 05
Thanks for the guide!
can you add the list "application not to remove" in this topic.
and convert this visual guide to pdf file for easy read for offline.

#20
Tamingsari2k

Tamingsari2k
  • Member
  • 4 posts
  • Joined 12-November 05
double post ---> pls remove

Edited by Tamingsari2k, 02 May 2010 - 02:04 AM.


#21
Squall

Squall
  • Member
  • 1 posts
  • Joined 24-July 10
  • OS:Windows 7 x64
  • Country: Country Flag
Hello
Does 7 Customizer can remove some crap like Media Center or Languages Packs? i cant find it in tutorial and in 7customizer

#22
grabben

grabben

    -Grabben

  • Member
  • PipPipPipPip
  • 602 posts
  • Joined 20-December 09
  • OS:Windows 7 x64
  • Country: Country Flag

Hello
Does 7 Customizer can remove some crap like Media Center or Languages Packs? i cant find it in tutorial and in 7customizer


Why not read the support thread? Especially the first page.

It says component removal hasnt been implented yet..




#23
RickSteele

RickSteele

    Rick Steele

  • Member
  • PipPip
  • 259 posts
  • Joined 13-October 04
  • OS:Windows 7 x64
  • Country: Country Flag

Hello
Does 7 Customizer can remove some crap like Media Center or Languages Packs? i cant find it in tutorial and in 7customizer


You can eliminate the programs/components from installing during setup, and the services from propagating, by creating an answer file using Windows OPK imagex in WAIK. I do not like RT7Lite because if you do not modify all of the wims', it deletes those you do not; changing the default index number (similar to Enterprise). Doing it my way you can still load up 7C and apply the tweaks section with no adverse affects or complexities.
I have attached the answer file I use. Just substitute your values for name, support etc. This answer file disables Windows Defender, System Restore, OOB games, Windows Media Center, CEIP..., adds 4 search providers-Google as default, removes extraneous language packs, logs in the administrator automatically indefinitely (you can change this and add a user account in the answer file), etc. I use WMP12 and Shark007 codec packs here:
http://shark007.net/index.html
Those that know what they are doing can modify the file in notepad, or whatever, all others use OPK imagex. At any rate, the file should be thoroughly read changing that which you want different-most of the time simply changing False to True or vise versa will achieve this. There is redundancy in some entries by design, but, if any part of the answer file is not modified exactly right, absolutely no errors, install will fail. Be smart, copy the modified file to empty floppy or USB Flash and run a trial install (F8....etc.) cancelling the install at the last moment, then, you simply automatically reboot back up and running as you were.
The result is the same as if you physically removed these components with RT7Lite or whatever, with the exception that all is reversible in the OS (Programs and Features, System etc.) and the ISO size is not reduced.

RickSteele

Attached Files


Edited by RickSteele, 25 July 2010 - 05:47 PM.


#24
SiM99

SiM99
  • Member
  • 7 posts
  • Joined 10-July 10
  • OS:XP Home
Hi,

Just a quick question... Do you need to include the windows updates in a specific order, like oldest first, or will 7Customizer apply the updates in the correct way so as to make sure that the most recent files are used?

I'm just wondering if adding the newest patch first and the oldest patch last may possibly result in the older version of a system file being used. Up to now I've just downloaded all windows updates using autopatcher, searched the AP directory for *.msu files and added them all in one go. I'm currently building an image created with this method, but I'm not sure how I would test that all updates were applied correctly/in the right order :)

Thanks!


edit:
Hmmm, the iso that I was building never showed up... does 7Customizer not like the iso destination being a network directory? (I'm building within a VirtualBox VM, so had the destination as a shared folder, which shows as a network location)

Also, does 7Customizer not save any settings apart from the WAIK app locations?

Edited by SiM99, 31 August 2010 - 11:04 AM.


#25
grabben

grabben

    -Grabben

  • Member
  • PipPipPipPip
  • 602 posts
  • Joined 20-December 09
  • OS:Windows 7 x64
  • Country: Country Flag

Hi,

Just a quick question... Do you need to include the windows updates in a specific order, like oldest first, or will 7Customizer apply the updates in the correct way so as to make sure that the most recent files are used?

I'm just wondering if adding the newest patch first and the oldest patch last may possibly result in the older version of a system file being used. Up to now I've just downloaded all windows updates using autopatcher, searched the AP directory for *.msu files and added them all in one go. I'm currently building an image created with this method, but I'm not sure how I would test that all updates were applied correctly/in the right order :)

Thanks!


edit:
Hmmm, the iso that I was building never showed up... does 7Customizer not like the iso destination being a network directory? (I'm building within a VirtualBox VM, so had the destination as a shared folder, which shows as a network location)

Also, does 7Customizer not save any settings apart from the WAIK app locations?




1: No specific order no.
2: If you can write to a networkdirectory it should work fine.
3: You have to save settings yourself.






1 user(s) are reading this topic

0 members, 1 guests, 0 anonymous users
