SATA to IDE adapters: which/what/why?

- - - - -

  • Please log in to reply
80 replies to this topic

#1
dencorso

dencorso

    Iuvat plus qui nihil obstat

  • Supervisor
  • 6,128 posts
  • Joined 07-April 07
  • OS:98SE
  • Country: Country Flag

Donator

CAUTION: Do *NOT* buy any adapter based on the SunplusIT SPIF223A chip!

Full thread Summary, thanks to bphlpt :thumbup

Suggestions for improvement, by PM only, are welcome.

BTW, the real thread starter for this thread is shae, and the original initial post is the next one. I've inserted this post just to add the Summary to the thread, but that also makes me the apparent OP, so I decided to add this note to point out who the real thread starter is. :blink:

===================================


Good
----------------------------------


Best are based on the Marvell 88SA8040, most widely known among them are those made by Rosewill. But availability is scarce if at all. Such as:

SATA Bridge Board -- IDE-SATA07 -- Parallel ATA to Serial ATA Host Mode Bridge Board featuring Marvell 88SA8052 Bridge Controller
shae -- A manufacturer page for an adapter based on Marvell 88SA8052, with leds and M/S jumper, but without a "fence" around the IDE connector (I really hated those on old HDDs/mobos). The specs say 1.5Gbit, though the Marvell chip should support 3.0Gbit.
dencorso -- That is the famous "Rosewill IDE-SATA07 adapter" based on Marvell 88SA8052, referenced in this thread elsewhere and said to be very good. I actively looked for it but did not find any actually for sale, regardless of whether they would ship to Brazil or not. It seems its production has been discontinued. It was the successor to the long-ago discontinued legendary "Rosewill IDE-SATA01 adapter", which was based on the Marvell 88SA8040.
rloew -- Marvell wrote the Firmware for the Highpoint Card I mentioned before that does not support more than 2TiB, so it is possible there could be an issue above 2TiB.
shae -- At least judging from their site listing, that UK seller still has the item, though on a 2 month backorder.


----------------------------------


dencorso -- [...] the adapters based on JM20330 simply convert the interface, but don't affect much the final tranfer rates.
rloew -- It may be of interest that the JM20330 based adapter card combined with a Promise card will correctly handle a 3TB Drive and probably much larger.
http://www.msfn.org/...post__p__974552
shae -- Q: rloew, would 48-bit support guarantee proper support for 2TB+ on both the SATA and IDE sides?
rloew -- A: Since there are no 3TB PATA Drives, I had no reason to test it. I would not be surprised if the PATA<->SATA Adapter supports full 48-Bit LBA both ways, but support still requires that the Controller Firmware support full 48-Bit Addressing. The Promise Card labelled "Maxtor ATA133" does support full 48-Bit Addressing as have the SATA PCI and PCI-E cards, I have tested, except the Highpoint Cards. Motherboard BIOSes do NOT. So a DDO is required for every Motherboard connected Hard Drive. The Highpoint AHCI cards are totally incompatable with Windows 9x.

DOS and Windows 9x require additional Patches to support more than 2TiB.
dencorso -- All bidirectional adapters I've ever found have a problem: when you connect one of them to the mobo PATA connector, they'll give you just one sata channel (the master channel), so that you loose one device connection (the slave connection). They always have one PATA and two SATA connectors on the board, but one SATA conector can be used only when converting SATA --> PATA and the other only when connecting PATA --> SATA, so you cannot actually use both at the same time, as you'd need if they were capable of accepting both a master and a slave channel at the same time.


----------------------------------

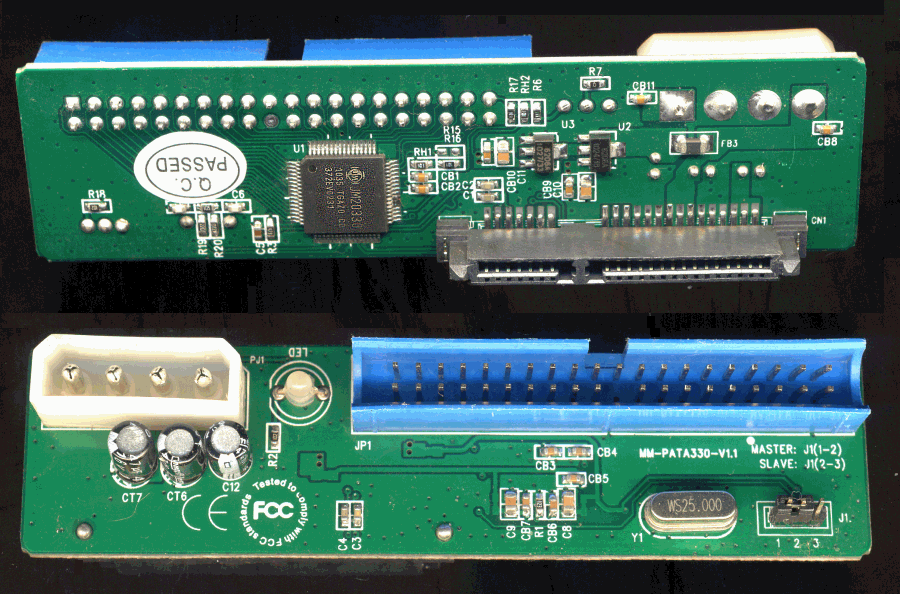

Marked MM-PATA330-V 1.1 and is made in China by I/O Crest
http://www.ebay.com/...984.m1439.l2649
PATA To SATA Adapter Converter ATA IDE Devices -- M8-3-SY-IDE-SATAHD MM-PATA223A-V1.0 (?)
Based on the JMicron JM20330
http://www.msfn.org/...post__p__974339
http://www.msfn.org/...post__p__974555
Adapts a SATA drive to a PATA motherboard


Seems same as MM-PATA330-V 1.1 (?):
SYBA Serial ATA SATA to IDE/PATA Adapter Cable HD HDD
http://www.ebay.com/itm/130562838636
New generic SYBA PATA to SATA Device Adapter
This PATA to SATA adapter allows you to use your SATA drive on an older computher which without SATA ports
Serial ATA (SATA) compliant with Serial ATA 1.0
Parallel ATA (PATA) Ultra ATA / 133 Parallel Interface
48 bit sector addressing
PATA: IDE 2 x 20 pin male connector with molex power connector
Master Slave device switchable: Supports using 2 adapters on the same ATA / IDE channel
OEM Part Number: SY-IDE-SATAHD
http://www.msfn.org/...post__p__974555
dencorso -- Yes. That is the MM-PATA330-V1.1, all right! The I/OCrest site address actually redirects to Syba's site, and that's where I found the .pdf of the printed manual i gace a link to (which is identical to the printed one I received with the adapter I bought and tested, down to its misspelled title: "Mamual").


----------------------------------


http://www.msfn.org/...post__p__979897
pointertovoid -- To connect a Sata cable on a Pata disk I have an RXD-628B (or RXD-6288?) card with a chip RXD 001 plus something lengthy. Dirt-cheap at eBay, and it works very well, with 75MB/s contiguous throughput just as the disks provides in Pata; access time in 0.2ms longer.

----------------------------------

Worked, but didn't fit for laptop use:
jaclaz -- What you are asking is a "piggyback" board that fits in the back of a SATA 2.5" HD and makes it IDE/ATA compatible to a laptop (44 pin) connection AND that fits inside your notebook? :w00t:

Such adapters are (AFAIK) VERY rare, and it is doubtful whether there is enough space inside the notebook, here is one: http://www.cooldrive...ahadrtoide.html
Serial ATA TO IDE Converter Board with POS:STI-P
Works with all SATA Drives up to 500GB in Capacity.
44 Pin IDE Connector Powers the Drive No Other Cables or Adapters are needed, just place this in between your SATA Drive and your 44 Pin IDE Cable Connector (IDC 44pin type) and You are now ready to use a SATA Drive.
Supports IDE with data transfer rate up to 66/100/133MB/s
Suitable for POS Systems (will not fit into most laptops) Great for all Mini Computers that use 44 pin IDE connector and require an upgrade to new SATA 2.5 Inch Drives.
Model No. SATAIDE-POS
Suitability 2.5 SATA HDD
Interface IDE
Dimension 69 x 14 x 17.5 mm (L x W xH)
Convert Any SATA I or SATA II Hard Drive into a 44-Pin IDE Drive, Powered by 44-Pin IDE Cable.
http://www.msfn.org/...post__p__979559
tomasz86 -- So I actually ordered one of these adapters. Unfortunately I wasn't able to find a slim one, only a similar thing to the one mentioned above.

I checked my notebook and I think it should fit with an SSD after removing the case [...]

http://www.msfn.org/...post__p__980112
tomasz86 -- I connected a 5200 rpm SATA drive to my notebook using the adapter I mentioned before and it's detected in BIOS although its size isn't reported correctly. I guess the BIOS can detect only up to 160 GB (the drive itself has 250 GB).

http://www.msfn.org/...post__p__980151
tomasz86 -- [...] This notebook (Samsung SENS Q10) was made around 2002 and there's been no BIOS updates released at all.

http://www.msfn.org/...post__p__982862
tomasz86 -- Jaclaz was right. The first adapter was too tall to fit in the notebook, even when the SSD was used without its case.


----------------------------------


Worked in a laptop with stripped SSD:
2.5" SATA SSD HDD driver to IDE 44Pin Converter Adapter
http://www.ebay.com/itm/170630989456
* 7+15 PIN SATA hard disk to 44 PIN IDE interface,make the new 2.5-inch sata hdd to be used on the old IDE motherboard, if you want a product to install 2.5 inch sata hard drive to the old IDE motherboard , this is the best option
* Chip: JM20330
* Consistent with Serial ATA 1.0 specification, the max transfer rates up to 150MB/s
* Support ATA 66/100/133
* Hot-swappable,don't need any driver
* Supports DOS, Win98/SE, 2000, Server 2003, XP, Vista, 7, Sever 2008 & Mac OS & Linux.
* Size:69 mm
http://www.msfn.org/...post__p__982862
tomasz86 -- First of all, I can say that everything works properly and there are no problems with stability. The SSD is detected properly in the BIOS and also when installing Windows. As it's a 64 GB capacity drive there are no issues with the BIOS too (its limit is 160 GB).
Fit inside Samsung SENS Q10 notebook with disassembled SSD


===================================
****************************************************
===================================


Bad
----------------------------------


HXSP-071218 - based on SunplusIT SPIF223A
http://www.msfn.org/...post__p__971234
jaclaz -- [...] the spif223a is rated as being capable of haveing full ATA speed:
http://www.sybausa.c...nfo.php?iid=372
http://www.sunplusit...e/SPIF223A.aspx
http://uploadpdf.ic3...ww.ic37.com.pdf
dencorso -- That's why I said I'm not sure the chip is to blame... most probably conception of the adapter board is flawed. Too bad 95% of what one finds for sale right now is that adapter I posted a pic of, in two flavours: with 2 electrolytic caps below the IDE connector (as in the pic I posted) or with 2 smd tantalum ones instead. Neither works, in my experience.
dencorso -- The other adapter based on the SunPlusIT chip was detected correctly and supported master, slave and cable select modes. It seemed to work OK, but SpinRite 6.0, NDD, SCANDISK and chkdsk all found lots of bad sectors in both HDDs, which do not exist when they are connected directly via SATA interface or using any of the two adapters based on the JMicron chip. So it is flawed and not recommended at all. I shall post about it last.



----------------------------------


SATA to IDE Hard Disk Mini Vertical Bridge Adapter Card
http://dx.com/p/sata...pter-card-12537
shae -- An apparent JM20330 one on DealExtreme for less than 5$, with M/S/CS mode. But one review complains it failed within a few minutes taking the drive with it. (Also unclear why the jumper legend is on the inner side.)
http://www.msfn.org/...post__p__974555
dencorso -- No. Despite the site's photo showing it using the JM20330, at least one customer got one with a SunplusIT SPIF223A, besides myself, judging from the customers photos and comments. It seems both chips are pin-to-pin compatible, and this complicates things even more... That one is not based on the JM20330 at all. It is, in fact, the second type of adapter based on the SunplusIT SPIF223A chip that I tested. Its identifier is HW629D Rev 3.1. Even the package is exactly the same. The one that caused false multiple errors, about which I posted above. Whatever the price, it must be avoided. It's flawed, but appears to work OK, until one tries to chkdsk it.


----------------------------------


http://www.msfn.org/...post__p__979897
pointertovoid -- To connect a Pata ribbon on a Sata disk I had a Hxsp-071218 card which is bad. It blocked an otherwise sound Bios with safe sizes everywhere, or run at the Bios but not with Seatools, FDisk, or as a secondary disk on W2k... I don't use it any more.


===================================
****************************************************
===================================



Unknown - No verified testing by MSFN members
----------------------------------


2.5" SATA SSD HDD driver to mini 44pin IDE adapter 5014
http://www.ebay.com/...=item3365e3bddd
1.support SATA Drives up to 500GB
2.Supports IDE 66/100/133MB/s
4. No need driver ,plug and play,but not support hot swappable.
Notice: it doesn't support 3.5"SATA HDD as power is not 12V.


----------------------------------


2.5"Serial SATA HDD To 44Pin Male IDE Adapter Converter
http://www.ebay.co.u...327709334534724
2.5" sata serial ata hard disk to ide Converter Adapter
* 7+15 PIN SATA hard disk to 44 PIN IDE interface,make the new 2.5-inch sata hdd to be used on the old IDE motherboard, if you want a product to install 2.5 inch sata hard drive to the old IDE motherboard , this is the best option
* Chip: JM20330
* Consistent with Serial ATA 1.0 specification, the max transfer rates up to 150MB/s
* Support ATA 66/100/133
* Hot-swappable,don't need any driver


----------------------------------


2.5" SATA SSD HDD driver to mini 44pin IDE adapter 5005
http://www.ebay.com/...=item33672c1718
1.support SATA Drives up to 500GB
2.Supports IDE 66/100/133MB/s
4. No need driver ,plug and play,but not support hot swappable.
Notice: it doesn't support 3.5"SATA HDD as power is not 12V .if you want to use 2.5"SATA HDD as your laptop 2.5"IDE HDD.


----------------------------------


1.8" 16pin Micro SATA SSD to 2.5"44pin IDE adapter card
http://www.ebay.com/...=item336738e17d
1.Chipset: JM20330
2.Support 3.3V or 5V Micro SATA Device
4. No need driver ,plug and play,but not support hot swappable.
5.convert your 1.8"micro sata SSD/HDD as 2.5" IDE HDD.


----------------------------------


2.5" to 3.5" IDE HDD 40 Pin Male 44 Pin Female Adapter
http://www.ebay.com/...=item4cf05f7436


----------------------------------


2.5'' TO 3.5'' IDE HARD DRIVE CONVERTER CABLE ADAPTER
http://www.ebay.com/...=item23090fdb17
Brand new 2.5'' to 3.5'' IDE hard drive converter cable
Allow you to connect your 2.5' laptop hard disk drive to your desktop PC
Connector on One End: IDE hard drive 40-pin Male
Connector on The Other End: Laptop hard drive 44-pin Female
This adapter can make you use a 44 pin laptop hard drive like a regular 40 pin IDE hard drive
Suitable for PC, Notebook


----------------------------------


Serial ATA SATA 7+15P HDD To 3.5 IDE Adapter Converter
http://www.ebay.com/itm/140619484951
Stable chipset JM20330
http://www.msfn.org/...post__p__983783
Seems there was some success, but also some unresolved issues. Unclear where the fault lies.


----------------------------------


See here - http://www.tivocommu...ad.php?t=416883 - for other comments

Addonics ADSAIDE SATA to IDE-ATAPI Converter.

Sabrent SBT-SCIDE converts PATA drives to SATA and is based on Jmicron JM20330. However, one reviewer found out that it wont read anything larger than 100 g.




How to remove advertisement from MSFN

#2
shae

shae

    Advanced Member

  • Member
  • PipPipPip
  • 303 posts
  • Joined 06-July 08
I want to get a SATA to IDE adapter, one of those that plug behind the drive, to connect modern drives to an ASUS P2B. It's probably going to be one of those that sell on eBay for a few dollars (it's cheaper than getting a native PATA drive, and more forward compatible).

What's good or bad? What is there to know about compatibility or reliability? Specific chips to look for? Is the disk size a concern for those adapters? SATA flavors? AHCI? Master/slave/CS? SMART?

I do have a SATA controller in that computer used for its eSATA, but for static internal drives somehow IDE seems safer to me for boot drives and for Win9x in general.

Edited by shae, 19 July 2011 - 03:37 PM.


#3
dencorso

dencorso

    Iuvat plus qui nihil obstat

  • Supervisor
  • 6,128 posts
  • Joined 07-April 07
  • OS:98SE
  • Country: Country Flag

Donator

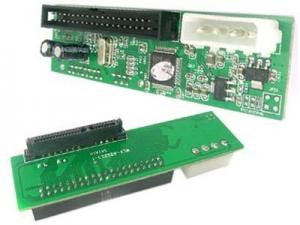

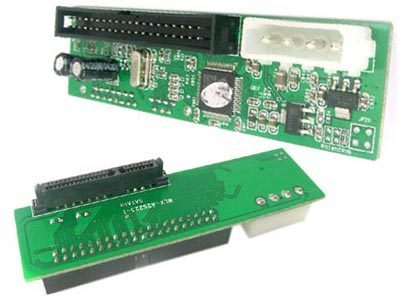

I'm currently working on it. Whatever you do, don't buy the ones labeled HXSP-071218! (see pic below) :ph34r:
They only work with 40 wire ribbon cables, thus limiting the interface to Ultra ATA-33 (or ATA-4), and slow a SATA drive to a crawl.
Unfortunately, those are the most commonly findable on eBay. They are based on the SunplusIT SPIF223A chip.
However, I cannot, at this moment, decide whethter the HXSP-071218 are just the result of a flawed project, or if the SPIF223A is really flawed itself.
And be sure to buy one that has a jumper (or switch) for MASTER/SLAVE selection.
Apparently the best are based on the Marvell 88SA8040, but those are not easy to find.
The most widely known among them are those made by Rosewill.
See this thread, elsewhere, for more details.
I've bought two different ones, which should be arriving soon. After I test them, I'll let you know.

Attached Files



#4
tomasz86

tomasz86

    www.windows2000.tk

  • Member
  • PipPipPipPipPipPipPipPip
  • 2,528 posts
  • Joined 27-November 10
  • OS:none specified
  • Country: Country Flag
I would recommend getting a PCI SATA controller. I tried a few of these cheap adapters and there was ALWAYS problem with them. Either it was reduced to ATA-33 (as dencorso pointed out) or it was working very unstable (connection lost when copying larger number of files, etc.).

Edited by tomasz86, 19 July 2011 - 08:25 PM.



#5
jaclaz

jaclaz

    The Finder

  • Developer
  • 14,864 posts
  • Joined 23-July 04
  • OS:none specified
  • Country: Country Flag
I have used in the past one of the "bidirectional-type", which have a different "shape", like these:
http://www.geeks.com...ATA-ADP&cpc=SCH
it was just for "emergency", but it did work with 80-pin cables and "acceptable" speed (didn't measure it, at the time, but I would have noticed an ATA-33 speed).
Cannot really say which chip it was based.

BTW, and OT, IMHO a little lead :ph34r: in an adapter:

WARNING: The solder used in this product contains lead, a chemical known to the State of California to cause birth defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if heating the solder.

is UNlikely to provoke *anything* :w00t:, after all the human race did not became extinct notwithstanding saturnism (which needs quite a bigger amount of lead to be absorbed):
http://medical-dicti...y.com/saturnism

@dencorso
the spif223a is rated as being capable of haveing full ATA speed:
http://www.sybausa.c...nfo.php?iid=372
http://www.sunplusit...e/SPIF223A.aspx
uploadpdf.ic37.com/2009-2-25/SPIF223A_www.ic37.com.pdf

jaclaz

#6
dencorso

dencorso

    Iuvat plus qui nihil obstat

  • Supervisor
  • 6,128 posts
  • Joined 07-April 07
  • OS:98SE
  • Country: Country Flag

Donator

I got that datasheet too. That's why I said I'm not sure the chip is to blame... most probably conception of the adapter board is flawed. Too bad 95% of what one finds for sale right now is that adapter I posted a pic of, in two flavours: with 2 electrolytic caps below the IDE connector (as in the pic I posted) or with 2 smd tantalum ones instead. Neither works, in my experience.

#7
shae

shae

    Advanced Member

  • Member
  • PipPipPip
  • 303 posts
  • Joined 06-July 08
Thanks. Interesting thread there, but focused on those video-specific devices. Looks like there are newer chips that support SATA2. I wonder if that matters even if IDE is slower than SATA1.

I don't know's what the deal with only working at 33MB/sec, but it's not a major concern for my intended use which is limited to that rate anyway.

tomasz: I don't want to use a SATA controller for the above reasons. I also disable/enable the controller on the fly in 9x to make it detect eSATA properly, which would be another problem.

#8
esecallum

esecallum

    Junior

  • Member
  • Pip
  • 99 posts
  • Joined 21-November 06

I got that datasheet too. That's why I said I'm not sure the chip is to blame... most probably conception of the adapter board is flawed. Too bad 95% of what one finds for sale right now is that adapter I posted a pic of, in two flavours: with 2 electrolytic caps below the IDE connector (as in the pic I posted) or with 2 smd tantalum ones instead. Neither works, in my experience.


i use the sata/ide adapter all the time the one with the 2 electro caps.it works great.cost me 1.50 each from china.you need to adjust bios for legacy compatiblity.

it means i can use sata drive and connect it to a ide connector.i can do anything.do backups,copy 300000 files,etc


i measured the speed and it is 30 mb/sex using unstobable copier and manual methods.

all this talk about sata 1 sats 3 sata 4 going up to transfer speeds 1ghz 2ghz and 3 ghz is pure rubbish.it is simply the interface speed.the hard drive platters/heads can never achieve it ever.


a hard drive would explode if it tried to tansfer data at that speed.

the speed is limited by the MECHANICAL platters speed and the MECHANICAL head write/read speed.

sata 1,sata 2 ,sata 3, is all pure marketing rubbish to rob us of money.

it is like widening a door for a herd of tortoises.

#9
shae

shae

    Advanced Member

  • Member
  • PipPipPip
  • 303 posts
  • Joined 06-July 08

you need to adjust bios for legacy compatiblity.

It appears to the system as IDE, so what legacy settings do you mean?

it is simply the interface speed.the hard drive platters/heads can never achieve it ever.

Modern large HDDs reach 150-160MB/sec at the beginning of the disk, so exhausting SATA1. The fastest SSDs can triple that speed; that is beyond SATA2 capabilities, hence the need for 6Gbit/sec (which will likely be surpassed at the consumer high-end within a year or two).

Edited by shae, 20 July 2011 - 05:45 PM.


#10
allen2

allen2

    Not really Newbie

  • Member
  • PipPipPipPipPipPipPip
  • 1,814 posts
  • Joined 13-January 06

you need to adjust bios for legacy compatiblity.

It appears to the system as IDE, so what legacy settings do you mean?

it is simply the interface speed.the hard drive platters/heads can never achieve it ever.

Modern large HDDs reach 150-160MB/sec at the beginning of the disk, so exhausting SATA1. The fastest SSDs can triple that speed; that is beyond SATA2 capabilities, hence the need for 6Gbit/sec (which will likely be surpassed at the consumer high-end within a year or two).

Although i don't agree with esecallum, which sata hard drive can really achieve such speed and which ssd can provide more than 400MB/s (except pci-e based one) on incompressible data ?
There are a lot of other factors than interface speed that provide in the end more speed to the end user (like NCQ and i don't how it could work through an ide controller but with a specific driver perhaps).

#11
shae

shae

    Advanced Member

  • Member
  • PipPipPip
  • 303 posts
  • Joined 06-July 08
allen, HDD max sequential transfer speed graph (article here), and SSDs.

#12
dencorso

dencorso

    Iuvat plus qui nihil obstat

  • Supervisor
  • 6,128 posts
  • Joined 07-April 07
  • OS:98SE
  • Country: Country Flag

Donator

Good news! This adapter works flawlessly! It's marked MM-PATA330-V 1.1 and is made in China by I/O Crest. :yes:

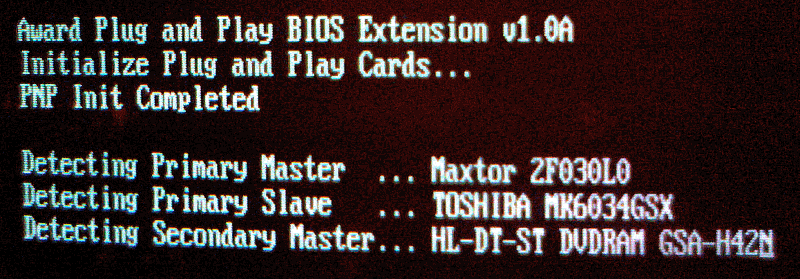

The seller doesn't say it, but it's based on the JMicron JM20330. The one I bought is almost identical to the one in the photos except it has a three-pin header and a jumper, instead of the microswitch, to select between master and slave. I've tested it using a SATA I TOSHIBA MK6034GSX 60 GB 2.5" HDD I've saved after upgrading a laptop which needed a bigger HDD. My tests included connecting it as master (with a normal IDE HDD as slave) and as slave (with a normal IDE HDD as master), both directly on the 1st IDE port of an ASUS A7V600-X board based desktop, and then connecting it, again first as master then as slave, through a Promise TX2 Ultra 100 PCI add-on CARD. And I compared both situations with the SATA HDD connected directly to the motherboard via one of its SATA ports. It worked beautifully, and passed tests under pure MS-DOS 7.10 with Eric Auer's dosfsck 2.11 (15 Apr 2006), Win ME (DOS) Scandisk, NDD (DOS v. 2002 ..10E) and SpinRite 6.0, and under Win XP SP3, with chkdsk. Also under Win XP SP3 I tested its speed using Crystal DiskMark 2.2 and found out the adapter does not affect the disk speed in any of the configurations tested. This is the fourth different adapter I've bought, and the only one to perform flawlessly troughout all the tests I was able to perform. I do recommend it, despite the fact that, at US$11 each, it was the most expensive IDE-SATA adapter I've bought: it's worth every cent of it. There's a manual for it downloadable here, although it's quite terse.

Attached File  photo0106.gif   103.06KB   6 downloads ..... Attached File  Twain12.gif   220.46KB   10 downloads



#13
bphlpt

bphlpt

    MSFN Addict

  • Member
  • PipPipPipPipPipPipPip
  • 1,828 posts
  • Joined 12-May 07
  • OS:none specified
  • Country: Country Flag
Your tests all seem to be for adapting a SATA drive to a PATA motherboard connection. I've seen some documentation for some adapters that say their adapter works bi-directionally - ie also for PATA drive to SATA motherboard connection. Do you know if this adapter also does this?

Cheers and Regards

Posted Image


#14
dencorso

dencorso

    Iuvat plus qui nihil obstat

  • Supervisor
  • 6,128 posts
  • Joined 07-April 07
  • OS:98SE
  • Country: Country Flag

Donator

Yes I do: no it doesn't! :)
All bidirectional adapters I've ever found have a problem: when you connect one of them to the mobo PATA connector, they'll give you just one sata channel (the master channel), so that you loose one device connection (the slave connection). They always have one PATA and two SATA connectors on the board, but one SATA conector can be used only when converting SATA --> PATA and the other only when connecting PATA --> SATA, so you cannot actually use both at the same time, as you'd need if they were capable of accepting both a master and a slave channel at the same time.
That said, I guess that converters of this kind based on the JMicron JM20330 are the best bet available, nowadays, since the Marvell 88SA8040 and its successors, if any, are not in production anymore, and I, for one, am, by now, convinced that the omnipresent SunplusIT SPIF223A chip *is* flawed.

#15
tomasz86

tomasz86

    www.windows2000.tk

  • Member
  • PipPipPipPipPipPipPipPip
  • 2,528 posts
  • Joined 27-November 10
  • OS:none specified
  • Country: Country Flag
Good to know about this, dencorso :)

I'll look for this adapter if I ever need to use one in the future.



#16
monroe

monroe

    Friend of MSFN

  • MSFN Sponsor
  • 953 posts
  • Joined 21-May 07
  • OS:XP Pro x86
  • Country: Country Flag

Donator

OK I have a question for dencorso or anyone. I went to eBay to check out the adapter that you mention in your earlier post. I was going to buy one but then I realized this must be for a desktop hard drive. Earlier this year I bought a couple of IDE notebook hard drives to have on hand ... however when I was shopping around I noticed I could have gotten a new SATA hard drive with more capacity at a much lower price. At the time I didn't know much about adapters going either way ... SATA to IDE and so forth. Just a simple question, can you also recommend a good adapter so I could use a newer SATA hard drive on my older Pentium 3 notebooks. I've been following this thread and it's very interesting ... more things that I now have a better understanding of. ... thanks

Edited by duffy98, 21 August 2011 - 08:46 AM.


#17
jaclaz

jaclaz

    The Finder

  • Developer
  • 14,864 posts
  • Joined 23-July 04
  • OS:none specified
  • Country: Country Flag

OK I have a question for dencorso or anyone.

I will attempt qualifying for the "anyone" ;).

What you are asking is a "piggyback" board that fits in the back of a SATA 2.5" HD and makes it IDE/ATA compatible to a laptop (44 pin) connection AND that fits inside your notebook? :w00t:

Such adapters are (AFAIK) VERY rare, and it is doubtful whether there is enough space inside the notebook, here is one:
http://www.cooldrive...ahadrtoide.html

ADDITIONALLY, do not overlook that the adapter will consume a (very little) amount of power, so, since - generally speaking - notebooks specs tend to be "tight" if you old HD was (say) rated for 5V 700 mA, and your new one is (say) 750 mA + the little the converter may consume (still say) another 100 mA, you could simply draw too much power from the 5V rail.
and HEAT may be a problem inside a notebook, since they are normally already well beyond reasonable temperature... :ph34r:

jaclaz

#18
tomasz86

tomasz86

    www.windows2000.tk

  • Member
  • PipPipPipPipPipPipPipPip
  • 2,528 posts
  • Joined 27-November 10
  • OS:none specified
  • Country: Country Flag
jaclaz, this adapter looks very interesting. I guess it could be possible to put an SSD into an older notebook by using it? The heat shouldn't be a problem in this case.

Have you tried using it? I'd be grateful for any "safe" recommendations.

Edited by tomasz86, 21 August 2011 - 10:23 AM.



#19
jaclaz

jaclaz

    The Finder

  • Developer
  • 14,864 posts
  • Joined 23-July 04
  • OS:none specified
  • Country: Country Flag

jaclaz, this adapter looks very interesting. I guess it could be possible to put an SSD into an older notebook by using it? The heat shouldn't be a problem in this case.

But unless you invent a way to compress matter into a smaller volume, space might be :whistle: :
http://www.cooldrive...ahadrtoide.html

Supports IDE with data transfer rate up to 66/100/133MB/s

Serial ATA To IDE converter board

Suitable for POS Systems (will not fit into most laptops) Great for all Mini Computers that use 44 pin IDE connector and require an upgrade to new SATA 2.5 Inch Drives.

even if the SSD is smaller than the drive, the actual piggyback board is taller than the height of the drive and conversely of the drive bay. Maybe on some models, with a "dremel" and a lot of time/patience a case mod can be done. :unsure:

I would rather go for something "flat" like this one:
http://www.ebay.co.u...327709334534724
(seemingly even more "rare")
Wait, here there is one:
http://www.ebay.com/...=item3365e3bddd
(but this one is larger :()

Maybe this is the only "type" that would fit for your pourpose:
http://www.ebay.com/...=item33672c1718

Or this (micro SSD)
http://www.ebay.com/...=item336738e17d

Have you tried using it? I'd be grateful for any "safe" recommendations.

Naah, never had an occasion, as said they are rare ;).

jaclaz

Edited by jaclaz, 21 August 2011 - 11:58 AM.


#20
dencorso

dencorso

    Iuvat plus qui nihil obstat

  • Supervisor
  • 6,128 posts
  • Joined 07-April 07
  • OS:98SE
  • Country: Country Flag

Donator

I think jaclaz covered all the bases so I have little to add.
But I noticed that the last link jaclaz provided in the above post describes and adapter the seller declares uses the JMicron JM20330.
So it makes me think the others the same seller says nothing about the chipset probably are not based on that chip, and that the seller is aware other chips are not as good as the JMicron...
So that's one point.
The other point to be highlighted is that while the SATA connector is the same for all sizes, most laptops use a 44-pin PATA connector, instead of the usual 40-pin one.
So the first thing is to determine which type of PATA connector one's actual laptop/notebook/netbook uses, before anything.

#21
jaclaz

jaclaz

    The Finder

  • Developer
  • 14,864 posts
  • Joined 23-July 04
  • OS:none specified
  • Country: Country Flag

The other point to be highlighted is that while the SATA connector is the same for all sizes, most laptops use a 44-pin PATA connector, instead of the usual 40-pin one.

Well, NO.
2.5" PATA/IDE HDs ALL use the 44 pin connector and all the adapters above use that. (as well as ALL the laptops that have a 2.5" IDE disk from factory)
The 40 Pin connector is ONLY on 3.5 Drives AFAIK.

jaclaz

#22
dencorso

dencorso

    Iuvat plus qui nihil obstat

  • Supervisor
  • 6,128 posts
  • Joined 07-April 07
  • OS:98SE
  • Country: Country Flag

Donator

Well, I wasn't sure *all* used the 44-pin. So I stand corrected, thanks. But that settles it, too: the adapters i tested were (all 4) 40-pin ones so, even the best one about which I posted above, definitely won't work in a laptop/notebook/ netbook at all, regardles of their dimensions and connector disposition.

#23
monroe

monroe

    Friend of MSFN

  • MSFN Sponsor
  • 953 posts
  • Joined 21-May 07
  • OS:XP Pro x86
  • Country: Country Flag

Donator

OK jaclaz ... thanks for making things more clear for me, have a lot to read in the posts. When I was hard drive shopping earlier in the year, I thought the adapter would replace the one that is already attached to the hard drive caddy where the hard drive is attached. I bought two additional IDE hard drives and almost bought a SATA 2.5 drive, thinking I could probably buy an adapter later on for it to fit in my notebook. I last bought new 2.5 hard drives in 2006 ... I really don't remember if there were SATA drives around then ... there was still a good selection of IDE drives at good prices in 2006. When I thought earlier this year to maybe get a few more IDE drives ... just to be on the safe side, I was surprised to see mostly SATA drives for notebooks and desktops ... very few IDE drives seem to be available and at higher prices. I might pick up another IDE drive or two, since I understand I won't have the option of using a SATA drive in my notebook. My NEC is really cramped for hard drive space and that hd caddy just fits inside that space. ... thanks dencorso for the info also.

...

#24
jaclaz

jaclaz

    The Finder

  • Developer
  • 14,864 posts
  • Joined 23-July 04
  • OS:none specified
  • Country: Country Flag

Well, I wasn't sure *all* used the 44-pin. So I stand corrected, thanks. But that settles it, too: the adapters i tested were (all 4) 40-pin ones so, even the best one about which I posted above, definitely won't work in a laptop/notebook/ netbook at all, regardles of their dimensions and connector disposition.

Well, NO. ;)
You may use them allright (space permitting) with another "passive" adapter, like this type:
http://www.ebay.com/...=item4cf05f7436
or this:
http://www.ebay.com/...=item23090fdb17
or this:
http://www.ebay.com/...=item2a059b4262

jaclaz

Edited by jaclaz, 22 August 2011 - 01:04 AM.


#25
shae

shae

    Advanced Member

  • Member
  • PipPipPip
  • 303 posts
  • Joined 06-July 08
dencorso, which of your tests failed with other adapters? And did you try large disks like 1.5 or 2TB?




1 user(s) are reading this topic

0 members, 1 guests, 0 anonymous users
