Very poor performance of SSD on a SAS controller

- - - - -

  • Please log in to reply
9 replies to this topic

#1
tomasz86

tomasz86

    www.windows2000.tk

  • Member
  • PipPipPipPipPipPipPipPip
  • 2,520 posts
  • Joined 27-November 10
  • OS:XP Pro x86
  • Country: Country Flag
I wonder what caues such a poor performance of SSD on a PCI-E LSI Logic 3042E SAS controller:

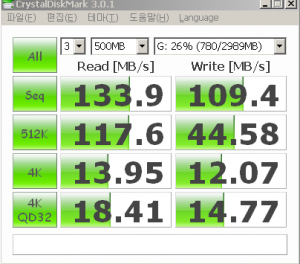

1.Samsung 470 @ LSI Logic 3042E

Spoiler


2. Samsung 830 @ LSI Logic 3042E

Spoiler



On the other hand below you can see how the drive "should" work:

3. Samsung 470 @ AMD A55 SATA2 controller

Spoiler



And lastly, this is a RAID0 of 2x Fujitsu MAX3036RC (37GB 15000 rpm SAS drive) on the same LSI controller...

4. 2x Fujitsu MAX3036RC @ LSI Logic

Spoiler



I know that the controller can limit the sequentional transfer rates but has anyone got any idea why the 4K values are so bad? :/
I have also noticed that copying files and other operations are not smooth when the SSD is connected to the LSI Logic controller while there are no problems when connected to the AMD A55 one.

Of course everything happens on the same mainboard (ASRock A55 Pro3) and the LSI controller is connected to the second PCI-E (x4) slot.

Edit: Added spoilers.

Edited by tomasz86, 24 August 2012 - 02:56 PM.

Posted Image
Unofficial Service Pack 5.2 for MS Windows 2000 <- use this topic if you need help with UURollup, Update Rollup 2 and other unofficial packages


How to remove advertisement from MSFN

#2
MHD

MHD
  • Member
  • 2 posts
  • Joined 06-May 12
  • OS:none specified
  • Country: Country Flag

I wonder what caues such a poor performance of SSDPosted Image on a PCI-E SAS controllerPosted Image:

Probably you are testing your SSD with small files? Try doing it with large files to examine the real performance

#3
tomasz86

tomasz86

    www.windows2000.tk

  • Member
  • PipPipPipPipPipPipPipPip
  • 2,520 posts
  • Joined 27-November 10
  • OS:XP Pro x86
  • Country: Country Flag
Well, I ran exactly the same benchmark (CrystalDiskMark) using exactly the same drive (Samsung 470) on two different controllers. The difference in results is huge :/

Edited by tomasz86, 06 May 2012 - 11:55 AM.

Posted Image
Unofficial Service Pack 5.2 for MS Windows 2000 <- use this topic if you need help with UURollup, Update Rollup 2 and other unofficial packages

#4
allen2

allen2

    Not really Newbie

  • Member
  • PipPipPipPipPipPipPip
  • 1,812 posts
  • Joined 13-January 06
Maybe you could tweak your lsi controller to get better performance but you won't get great speed with this very basic controller (even using a raid 0): You could try to enable or disable the disk read/write cache (some raid controller disable it and this one disable it usually), you could create a tweaked raid volume depending on the data stored (small files need usually a small strip size).

#5
tomasz86

tomasz86

    www.windows2000.tk

  • Member
  • PipPipPipPipPipPipPipPip
  • 2,520 posts
  • Joined 27-November 10
  • OS:XP Pro x86
  • Country: Country Flag
It's a late reply but I just want to say that you were right! Write cache is disabled by default when the drive is connected to this controller.

The 4K values are much better after enabling it. It's the same Samsung 470 64GB @ LSI Logic 3042E:

Spoiler


Thank you :)

Edit: Added spoiler.

Edited by tomasz86, 24 August 2012 - 02:56 PM.

Posted Image
Unofficial Service Pack 5.2 for MS Windows 2000 <- use this topic if you need help with UURollup, Update Rollup 2 and other unofficial packages

#6
tomasz86

tomasz86

    www.windows2000.tk

  • Member
  • PipPipPipPipPipPipPipPip
  • 2,520 posts
  • Joined 27-November 10
  • OS:XP Pro x86
  • Country: Country Flag
I've connected Seagate Cheetah 15K.7 600 GB to the same controller:

Spoiler


Now I'm really curious why linear transfer speed of the SSD is so low (133 / 109 MB/s) when this HDD reaches almost 200 MB/s :huh:
Posted Image
Unofficial Service Pack 5.2 for MS Windows 2000 <- use this topic if you need help with UURollup, Update Rollup 2 and other unofficial packages

#7
allen2

allen2

    Not really Newbie

  • Member
  • PipPipPipPipPipPipPip
  • 1,812 posts
  • Joined 13-January 06
People think that SSD are faster than hard drive in every domain and it is wrong:
- Using incompressible data or not will give you completly different result. So depending on your usage, ssd might not be the right choice.
- Raid controller were optimized for hard drive not for ssd.
- Raid controller disable garbage collection (trim) so even if your OS support it, it won't happen unless the drive is able to do it by itself.
- You also took one the fastest enterprise hard drive and you're comparing it to a main stream ssd.

#8
tomasz86

tomasz86

    www.windows2000.tk

  • Member
  • PipPipPipPipPipPipPipPip
  • 2,520 posts
  • Joined 27-November 10
  • OS:XP Pro x86
  • Country: Country Flag
The problem here seems to be actually different.

The controller recognises the SSD as an ATA133 disk and reduces its speed to ATA133. That's why its sequential read speed is always ~130 MB/s.

This isn't the newest controller and there are absolutely no options in its BIOS to manage the disks except for creating RAID0/1 arrays so probably nothing can be done in this particular situation. The controller itself is capable of higher speeds as can be seen in case of the Seagate Cheetah disk tested before.

Edited by tomasz86, 12 November 2012 - 04:33 PM.

Posted Image
Unofficial Service Pack 5.2 for MS Windows 2000 <- use this topic if you need help with UURollup, Update Rollup 2 and other unofficial packages

#9
Tripredacus

Tripredacus

    K-Mart-ian Legend

  • Super Moderator
  • 9,913 posts
  • Joined 28-April 06
  • OS:Server 2012
  • Country: Country Flag

Donator

Well I looked at the specs of that card (on the website) and the latest OS it supports if Windows XP. Not even any Server 2003 support. It seems to me that the current firmware on that card probably doesn't know what an SSD is. Did you check to see if there was a firmware update is available for it?
MSFN RULES | GimageX HTA for PE 3-5 | lol probloms

#10
tomasz86

tomasz86

    www.windows2000.tk

  • Member
  • PipPipPipPipPipPipPipPip
  • 2,520 posts
  • Joined 27-November 10
  • OS:XP Pro x86
  • Country: Country Flag
Actually this controller uses exactly the same drivers as LSI 1064E and they are available up to Windows 7 / Windows Server 2008 R2:

http://www.lsi.com/products/storagecomponents/Pages/LSISAS1064E.aspx

There are no firmware updates listed there though. I'll try to look for them elsewhere. My model (3042E) was originally branded by HP but I can't find it on their website any more.

I'm not sure whether the firmware for 3041E is compatible.


Edit: I've just checked Hardware ID of the controller and it's:

VEN_1000&DEV_0056&SUBSYS_322B103C&REV_08
which is in fact exactly the same as 1064E:

http://www.driveridentifier.com/scan/driver_file_detail.php?inf_file_id=113718&md5=16c52c76c79f55197233a71017fc62eb&scanid=BF6AFF661B7348C59AB523ED6E074387&item_id=122202885&hardware_id=PCI\VEN_1000%26DEV_0056

Edited by tomasz86, 13 November 2012 - 10:58 AM.
