sfinktah

[SOLUTION] Seagate Barracuda 7200.7 PATA/IDE Diagnostic Serial/UART Po

4 posts in this topic

I copied this from a 7200.11 SATA post, (I guess "THE" post). It came with a note saying "This belongs in it's own thread."

This is that thread.

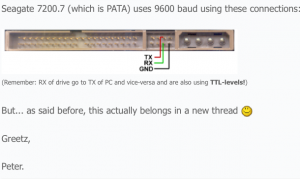

Also, the diagram was wrong.


TX and RX have been swapped.

To make myself extremely clear - if you follow the diagram, you should connect the pin labelled TX in the diagram to the TX pin of your "computer" (I think we're all using USB-TTL UARTs these days).

This is the reverse to how one would normally do thing - i.e. connecting the TX of device A to the RX of device B.

I will also add, (because this was bugging me aswell), that it will work without any jumpers being set (i.e. the master jumper, which inconveniently shares the ground pin), and without a 40-pin connector.

Apply power to the drive, set serial port to 9600 8-n-1 (no flow control) and you should see this on bootup.


Interface task reset
4096k x 16 buffer detected
ALPINE - 1_Disk M-21 11-25-03 18:53

Buzz -
Buzz - Head Mask FFFF - Switch to full int.
Spin Ready
8.54 09-29-04 10:54
(P)PATA Reset

CE Log EC=0 Rtype=36 OV=0 STStatus0
Slave

I would assume this apples to other PATA Seagate drives, YMMV.

post-362339-0-20820400-1348299418_thumb.

0

Share this post


Link to post
Share on other sites

... erm, and I just tried pressing ^Z and all I got was a lousy echo back. Well, I can't solve everything :P

0

Share this post


Link to post
Share on other sites

... and this is what a quite broken drive (not clicking, but shaking and repeatedly trying to "catch" when starting up) outputs:


Interface task reset
4096k x 16 buffer detected
APLUS - 1_Disk S.07 08-16-04 10:34

Buzz - Head Mask FFFF - Switch to full int.
Spin Ready
3.01 08-16-04 10:35
(P)PATA Reset
.
CE Log EC=0 Rtype=36 OV=0 STStatus0
AutoRd Err 47 at 00fd33.00.008b
AutoRd Err 43 at 00fd33.00.008b

Read Ver Retrys
AutoRd Err 43 at 00fd33.00.008b

Read Ver Retrys
AutoRd Err 43 at 00fd33.00.008b

Read Ver Retrys
AutoRd Err 43 at 00fd33.00.008b

Read Ver Retrys
AutoRd Err 43 at 00fd33.00.008b

Read Ver Retrys

Read Ver Failure!
Failed sys sect. write

CE Log EC=0 Rtype=36 OV=0 STStatus0
AutoRd Err 47 at 00fd33.00.008b
AutoRd Err 43 at 00fd33.00.008b

Read Ver Retrys
AutoRd Err 43 at 00fd33.00.008b

Read Ver Retrys
AutoRd Err 43 at 00fd33.00.008b

Read Ver Retrys
AutoRd Err 43 at 00fd33.00.008b

Read Ver Retrys
AutoRd Err 43 at 00fd33.00.008b

Read Ver Retrys

Read Ver Failure!
Failed sys sect. write
AutoRd Err 47 at 00fd33.00.0002
AutoRd Err 43 at 00fd33.00.0002

Read Ver Retrys
AutoRd Err 43 at 00fd33.00.0002

Read Ver Retrys
AutoRd Err 43 at 00fd33.00.0002

Read Ver Retrys
AutoRd Err 43 at 00fd33.00.0002

Read Ver Retrys
AutoRd Err 43 at 00fd33.00.0002

Read Ver Retrys

Read Ver Failure!
Failed sys sect. write
Slave.

0

Share this post


Link to post
Share on other sites

Well, looks like my TX does work... Not sure why it decided to work now, different drive, or different USB port... or just a shady 3rd party kext for my PL230x cable.

So, yes. Everything does work.

The ground cable fell out somewhere in the middle of this session, and it didn't seem to affect anything... although I wouldn't recommend trying that one at home.


Buzz - ..Interface task reset
1024k x 16 buffer detected
ALPINE - 1_Disk M.14 01-16-03 11:51

Buzz - Head Mask 0000 - Switch to full int.
Spin Ready
8.01 04-05-04 15:38
(P)PATA Reset
Slave.(
T>/2
2>
2>Z
2>/2
2>
2>U
2>
Buzz - Head Mask 0000 - Switch to full int.
Spin Ready
.(
2>Z
2>

Edited by sfinktah
