Has anyone ever tested Intel x9x chipset support?

- - - - - x9x chipset hasswell xp

  • Please log in to reply
8 replies to this topic

#1
ruthan

ruthan
  • Member
  • 3 posts
  • Joined 24-March 15
  • OS:Windows 7 x64
  • Country: Country Flag
Hello,
i would like know, if someone tested install Windows on Intel x9x and x8x chipset? For these are official XP drivers.. but i would like to know, if Xp is working with default drivers and how much paint it means.

 Main problem i see i disk controllers and disk speed, but i have found some MSI board with additional Sata Asmedia controller - with WIndows XP drivers (Z97 GAMING 7), so theoretically speaking it could work. I but i would like to know some real life experience before im would spend 500 buck for new MB and processor and spend few hours with components replacing.


How to remove advertisement from MSFN

#2
dencorso

dencorso

    Iuvat plus qui nihil obstat

  • Supervisor
  • 5,840 posts
  • Joined 07-April 07
  • OS:98SE
  • Country: Country Flag

Donator

No. XP doesn't work well with Haswells (and Broadwells). Intel dropped XP support as of the Panther Point chipsets (B75-Z77), so that's where driver availability problems begin. There's no support for on-chip graphics nor for intel USB 3.0 since x7x, so you're mistaken about driver availability.


I have XP SP3 on an 3770K i7 (Ivy Bridge) on a Z68 based motherboard (Asus P8Z68-V LX): it works perfectly.


The i7 4820K / X79 is the most recent Processor/Chipset combination reported to be fully functional with XP x86, AFAIK.


AFAICS, i7 4930K or 4960X should also work, but nobody, AFAIK, ever tested either.

#3
ruthan

ruthan
  • Member
  • 3 posts
  • Joined 24-March 15
  • OS:Windows 7 x64
  • Country: Country Flag

I know that Intel dont support Xp since X8x, but this is why im asking for real experience, i there is some work around. I dont care about iGPU, USB3 would be nice.



#4
bluebolt

bluebolt

  • Member
  • Pip
  • 96 posts
  • Joined 11-March 13
  • OS:Windows 2000 Professional
  • Country: Country Flag

Windows XP on the desktop installs and works fine with Haswell 8-Series and 9-Series chipsets; I have tested it on both Z87 and Z97.  Using a graphics card, the final result on the Z87 was a problem-free device manager, and the final result on the Z97 is just one problem device, the Universal Serial Bus (USB) Controller (where we find that the lack of XP USB 3.0 support shows up as Problem Device starting with the 9-series).



For example, begin with Intel’s August 2013 Chipset Device Software (v. 9.3.2.1020), the last version to work with XP.  Choose a board with Realtek audio and LAN hardware, and you can find XP drivers on the Realtek website.  And plenty of GPUs still support XP.



There is this null driver for the Management Engine PCI Simple Communications driver:

http://www.msfn.org/...r/#entry1097275



In the alternative--and I haven’t tested this--but, at least for the Z87 Gigabyte, there may be a full Management Engine package available here:

http://forum.hwbot.o...ead.php?t=77697



For the Z97, you may want this SMBus INF file (null driver) from Fernando:

http://www.win-raid....14.html#msg8447



To run in AHCI mode, you would need Fernando’s 11.2 driver, which can be integrated into the OS install media.



#5
AnX

AnX

    Fighting for the right to OS since 2010

  • Member
  • PipPip
  • 202 posts
  • Joined 20-June 12
  • OS:Vista Ultimate x64
  • Country: Country Flag

Windows XP would work on an X99 system. Infact, overclockers do load WinXP on X99 systems to do their bench tests.

Here is an example of such.


Vista SP2 to Vista RTM is as XP SP2 is to XP RTM.


AMD FX-8320 8-core CPU (OC to 4.4GHz) with Hyper 212 Evo, ASUS M5A99FX PRO R2.0 Motherboard, 8GB 1600 RAM, 60GB SSD (Vista SP2 X64) and 500GB HDD (Storage), Sapphire R7 260X 2GB Graphics Card, 620W Seasonic S12II, CM HAF 912 case.


#6
MrMaguire

MrMaguire

    Designed for Microsoft® Windows® XP

  • Member
  • PipPip
  • 146 posts
  • Joined 30-April 14
  • OS:XP Pro x64
  • Country: Country Flag

I wonder why overclockers like that one would use Windows XP instead of something newer.



#7
dencorso

dencorso

    Iuvat plus qui nihil obstat

  • Supervisor
  • 5,840 posts
  • Joined 07-April 07
  • OS:98SE
  • Country: Country Flag

Donator

Because it just rocks?


  • bluebolt likes this

#8
MrMaguire

MrMaguire

    Designed for Microsoft® Windows® XP

  • Member
  • PipPip
  • 146 posts
  • Joined 30-April 14
  • OS:XP Pro x64
  • Country: Country Flag

Well, Windows XP does rock. So no argument there. :D



#9
bluebolt

bluebolt

  • Member
  • Pip
  • 96 posts
  • Joined 11-March 13
  • OS:Windows 2000 Professional
  • Country: Country Flag

Having tested Windows XP installation on an MSI Z97 PC Mate, I’ve now taken the opportunity to test XP install on another Z97 motherboard, the Gigabyte GA-Z97-HD3P, resulting in an especially smooth process and nice finish.



The OS is Windows XP Professional with Onepiece Update Pack (December 2014) integrated via nLite, along with Intel’s August 2013 chipset INF and Fernando’s 11.2 AHCI driver.



From what I’ve read elsewhere it’s no secret that XP on the Z97 will in the end yield at least two “problem” devices (albeit of no great significance), the SMBus Controller and the Universal Serial Bus (USB) Controller.



Fernando’s null driver de-lists the SMBus Controller, and I found that this particular motherboard (Gigabyte GA-Z97-HD3P) has an option to turn off the xHCI controller (BIOS / Peripherals / XHCI Mode: Disabled), which also de-lists the USB Controller (BIOS otherwise at defaults, except for turning off number lock).

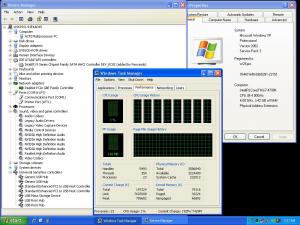

The result, then, is a problem-free device manager using Windows XP on the Z97 platform:



Attached File  Z97 Installation.JPG   143.65KB   1 downloads
