Windows 2000 Professional on the X99 Platform


Recommended Posts

I tested Windows 2000 Professional with the following hardware:

  • ASRock X99 Extreme4 LGA 2011-v3 motherboard
  • Intel i7-5960x processor
  • G.SKILL F4-3000C15Q-16GRBB RAM

I took an earlier HFSLIP package from tomasz86, which includes Unofficial Update Rollup v11-w20130323, and used nLite to integrate blackwingcat’s custom chipset software and 8.9 AHCI driver, and to make the ISO, which I burned to CD using Nero 7.11.10.0c.

I ran Unofficial Update Rollup v11-d20141130 and .net frameworks 1-4 (11142014) from tomasz86, used BWC nVidia 353.06 drivers for the graphics card, and enabled PAE mode.

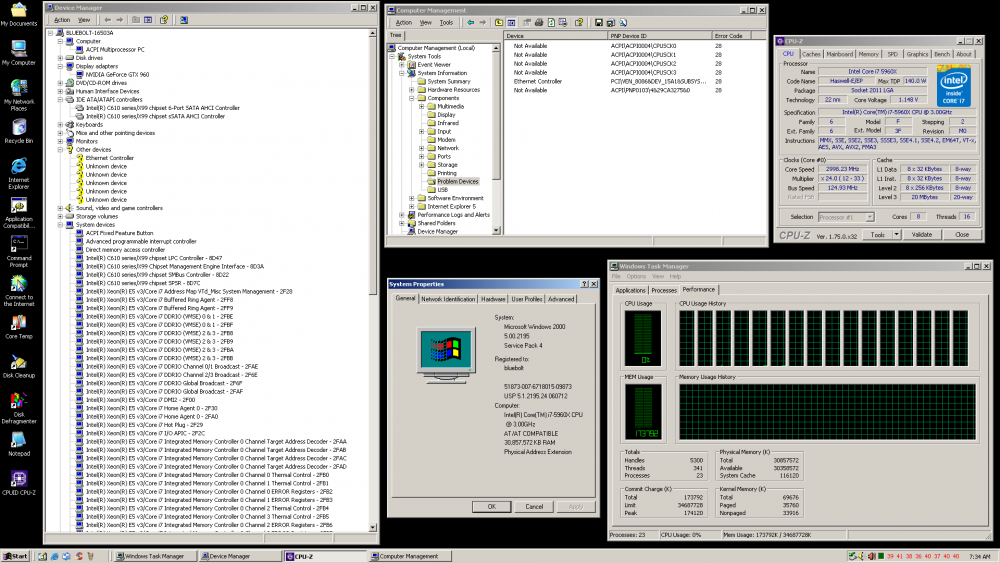

Here is a screenshot to demonstrate the first full-fledged test install:

56f0b989f38ab_W2KX99Desktop.thumb.PNG.da

I guess blackwingcat’s chipset software names at least 100 system devices (which is that many fewer yellow question marks in Device Manager).

I tried blackwingcat’s PRO2Kv2 and PRO2K v3 drivers for the LAN (it’s an Intel i218v, I think) by extracting the files and directing Device Manager to the extracts using Windows Update, but it can’t find a driver or says the OS is not supported, so I still need to figure that out, and maybe some other stuff.

I realize that most computerists would just assume that it's not possible to install Windows 2000 Professional on the X99 platform, and moreover, find it quite unfathomable that anyone would want to, but for the record it's actually really easy the second time.

Link to comment
Share on other sites


6 hours ago, bluebolt said:

I guess blackwingcat’s chipset software names at least 100 system devices (which is that many fewer yellow question marks in Device Manager).

I tried blackwingcat’s PRO2Kv2 and PRO2K v3 drivers for the LAN (it’s an Intel i218v, I think) by extracting the files and directing Device Manager to the extracts using Windows Update, but it can’t find a driver or says the OS is not supported, so I still need to figure that out, and maybe some other stuff.

I realize that most computerists would just assume that it's not possible to install Windows 2000 Professional on the X99 platform, and moreover, find it quite unfathomable that anyone would want to, but for the record it's actually really easy the second time.

Can you write down yellow question marks device Vendor id and device ID ?

And did you forget setting msiexec.exe XP compatible mode for other application for PRO2K driver ?

I think You can install lan driver from inf file directly.

Link to comment
Share on other sites

1 hour ago, bluebolt said:

Not there yet but a little closer, the red part is advice from pci-z 1.4:

56f1c309f3fa4_problemdevices.JPG.68ebb6d

http://blog.livedoor.jp/blackwingcat/archives/1229855.html

ACPI\PNP103 Driver is here.

You should make localize to English. :")

ACPI0004 is CPU container . does your bios setting have "legacy ACPI table show" ?

And it is "ACPI Module Device Driver" I think maker provide it

I218-V... Will you show me its dependency for example the following?


Link to comment
Share on other sites

Just now, blackwingcat said:

http://blog.livedoor.jp/blackwingcat/archives/1229855.html

ACPI\PNP103 Driver is here.

You should make localize to English. :")

ACPI0004 is CPU container . does your bios setting have "legacy ACPI table show" ?

And it is "ACPI Module Device Driver" I think maker provide it

And How about force install  IntelPPM driver ?

I218-V... Will you show me its dependency for example the following?


Link to comment
Share on other sites

Thanks for the information, I don't find any legacy ACPI settings, but it's hard to tell for certain because now when I enter my BIOS it freezes within 15 seconds.

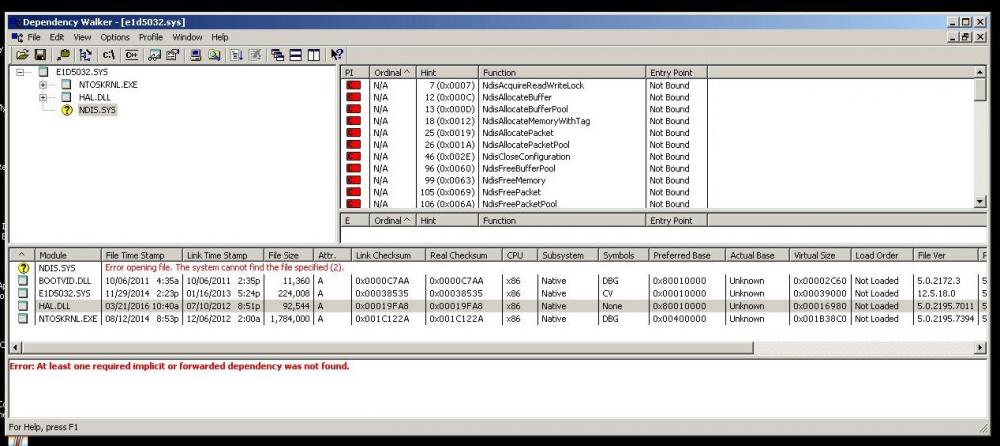

Dependency Walker opened with "Errors were detected when processing" E1D5032.SYS (PRO2kv3):


DW2.2.thumb.JPG.3e7f7eadd0b566785533723c

Link to comment
Share on other sites

Disconnect the power cable from the wall. Wait until any lighted LEDs turn off. Wait for one minute more.
Disconnect All SATA devices (SSD/HDD/CD/DVD/Blu-Ray).
Reconnect the power cable to the wall outlet, start the machine, then enter BIOS. Does it still freeze within 15 sec?

Link to comment
Share on other sites

11 hours ago, dencorso said:

Disconnect the power cable from the wall. Wait until any lighted LEDs turn off. Wait for one minute more.
Disconnect All SATA devices (SSD/HDD/CD/DVD/Blu-Ray).
Reconnect the power cable to the wall outlet, start the machine, then enter BIOS. Does it still freeze within 15 sec?

This morning the BIOS is no longer freezing, go figure.  Thanks for the reminder to completely disconnect first, because I still may need to clear and reset the system…

I got a “ntldr is missing” when I tried to start the other day, investigated and found that when I boot up with a USB stick installed, the BIOS in its wisdom resets the boot order to boot first from the USB sticks.

I hope to experiment a while longer first if I have to send it off for service, because I don’t have a backup board in place yet.

Link to comment
Share on other sites

The affinity between Windows 2000 Professional and this motherboard was unexpected, and makes me wonder… It could be the platform (X99) or the brand (ASRock); this is my first experience with either.  So an ASRock Z-97 might make a good choice for W2k Pro. After installation, but before enabling PAE, my System Properties showed 1.5 GB of RAM.  Normally my installations show 3.65 GB RAM.  Is this because there is no video on this line of CPUs?  While 3.65 GB of memory is one thing, 1.5 GB definitely looks like a bottleneck here--no problem for W2k as PAE is reliable, but what about 32-bit XP?  Not so good. During early practice installs a few days ago, I decided to try a Windows 2000 Professional “Includes Service Pack 3” original OS disc, and was amazed to watch the installation proceed right through to the end in full ACPI Multiprocessor PC mode:

SP3 on X99.jpg

Edited by bluebolt
Link to comment
Share on other sites

On 3/23/2016 at 7:17 PM, blackwingcat said:
On 3/23/2016 at 7:15 PM, blackwingcat said:

http://blog.livedoor.jp/blackwingcat/archives/1229855.html

ACPI\PNP103 Driver is here.

You should make localize to English. :")

ACPI0004 is CPU container . does your bios setting have "legacy ACPI table show" ?

And it is "ACPI Module Device Driver" I think maker provide it

And How about force install  IntelPPM driver ?

I218-V... Will you show me its dependency for example the following?

I downloaded ACPI\PNP103 Driver, localized to English and installed through Device Manager--it worked perfectly.  Thank you!  One less problem device listed now.

I investigated different ACPI settings in BIOS, but nothing de-lists the CPU container.  Copied IntelPPM driver to system32 drivers folder but when I ran intel4.reg I received “Cannot import…Error accessing the registry.”

Regarding the LAN, msiexec.exe was set.  Added “Option > Module Search Order ‘drivers’ folder” to Dependency Walker but results appear the same.  Tried various other drivers, but the “Connection (2) I218-V” (as BIOS identifies it) is still not working, no matter which driver I force.

Link to comment
Share on other sites

Finding almost nothing in the way of ACPI drivers, and beggars can’t be choosy, I tried this NEC file:

            12q4_86_pcd_01.zip

downloaded from here:
https://www.driverdouble.com/drivers/nec-acpi-module-device.html

I un-zipped it and directed Device Manager to the first Unknown on the list, which it seemed to like; Windows asked for a reboot, then three successive reboots resulting in a little progress as these "unknowns" became System Devices listings in Device Manager:

Problem Devices after nec acpi.JPG

Edited by bluebolt
Link to comment
Share on other sites

18 hours ago, blackwingcat said:

How about dependency Walker with fixed search order ? :)

I don’t know Dependency Walker, maybe I can attach here…

e1d5032.dwi

...or if not, then

Spoiler

*****************************| System Information |*****************************

Dependency Walker:       2.1.3623 (32-bit)
Operating System:        Microsoft Windows 2000 Professional (32-bit)
OS Version:              5.00.2195 Service Pack 4
Processor:               x86 Family 6 Model 15 Stepping 2, GenuineIntel, ~2999MHz
Number of Processors:    8, Mask: 0x000000FF
Computer Name:           BLUEBOLT-07A21C
User Name:               Administrator
Local Date:              Wednesday, March 30, 2016
Local Time:              7:47:43 AM Central Standard Time (GMT-06:00)
OS Language:             0x0409: English (United States)
Memory Load:             18%
Physical Memory Total:   1,530,146,816 (1460 MB)
Physical Memory Used:    282,066,944
Physical Memory Free:    1,248,079,872
Page File Memory Total:  4,294,967,295
Page File Memory Used:   0
Page File Memory Free:   4,294,967,295
Virtual Memory Total:    2,147,352,576
Virtual Memory Used:     47,783,936
Virtual Memory Free:     2,099,568,640
Page Size:               0x00001000 (4,096)
Allocation Granularity:  0x00010000 (65,536)
Min. App. Address:       0x00010000 (65,536)
Max. App. Address:       0x7FFEFFFF (2,147,418,111)

********************************| Search Order |********************************
*                                                                              *
* Legend: F  File                     E  Error (path not valid)                *
*                                                                              *
********************************************************************************

A user defined directory
   [  ] C:\Documents and Settings\Administrator\My Documents\PRO2k v3\APPS\PROSETDX\Win32\DRIVERS\
Side-by-Side Components (Windows XP only)
The system's "KnownDLLs" list
   [F ] c:\winnt\system32\ADVAPI32.DLL
   [F ] c:\winnt\system32\COMCTL32.DLL
   [F ] c:\winnt\system32\COMDLG32.DLL
   [F ] c:\winnt\system32\CRYPT32.DLL
   [F ] c:\winnt\system32\GDI32.DLL
   [F ] c:\winnt\system32\IMAGEHLP.DLL
   [F ] c:\winnt\system32\KERNEL32.DLL
   [F ] c:\winnt\system32\LZ32.DLL
   [F ] c:\winnt\system32\MPR.DLL
   [F ] c:\winnt\system32\MSASN1.DLL
   [F ] c:\winnt\system32\MSVCRT.DLL
   [F ] c:\winnt\system32\NTDLL.DLL
   [F ] c:\winnt\system32\OLE32.DLL
   [F ] c:\winnt\system32\OLEAUT32.DLL
   [F ] c:\winnt\system32\OLECLI32.DLL
   [F ] c:\winnt\system32\OLECNV32.DLL
   [F ] c:\winnt\system32\OLESVR32.DLL
   [F ] c:\winnt\system32\OLETHK32.DLL
   [F ] c:\winnt\system32\RPCRT4.DLL
   [F ] c:\winnt\system32\SHELL32.DLL
   [F ] c:\winnt\system32\SHLWAPI.DLL
   [F ] c:\winnt\system32\URL.DLL
   [F ] c:\winnt\system32\URLMON.DLL
   [F ] c:\winnt\system32\USER32.DLL
   [F ] c:\winnt\system32\VERSION.DLL
   [F ] c:\winnt\system32\WININET.DLL
   [F ] c:\winnt\system32\WLDAP32.DLL
   [F ] c:\winnt\system32\WOW32.DLL
The application directory
   [  ] C:\Documents and Settings\Administrator\My Documents\PRO2k v3\PRO1000-v2\Win32\
The 32-bit system directory
   [  ] C:\WINNT\system32\
The 16-bit system directory (Windows NT/2000/XP only)
   [  ] C:\WINNT\system\
The system's root OS directory
   [  ] C:\WINNT\
The application's registered "App Paths" directories
The system's "PATH" environment variable directories
   [  ] C:\WINNT\system32\
   [  ] C:\WINNT\
   [  ] C:\WINNT\System32\Wbem\
   [  ] C:\Program Files\Intel\DMIX\

***************************| Module Dependency Tree |***************************
*                                                                              *
* Legend: F  Forwarded Module   ?  Missing Module        6  64-bit Module      *
*         D  Delay Load Module  !  Invalid Module                              *
*         *  Dynamic Module     E  Import/Export Mismatch or Load Failure      *
*                               ^  Duplicate Module                            *
*                                                                              *
********************************************************************************

[   ] E1D5032.SYS
     [   ] NTOSKRNL.EXE
          [ ^ ] HAL.DLL
          [   ] BOOTVID.DLL
               [ ^ ] NTOSKRNL.EXE
               [ ^ ] HAL.DLL
     [   ] HAL.DLL
          [ ^ ] NTOSKRNL.EXE
     [ ? ] NDIS.SYS

********************************| Module List |*********************************
*                                                                              *
* Legend: D  Delay Load Module   ?  Missing Module           6  64-bit Module  *
*         *  Dynamic Module      !  Invalid Module                             *
*                                E  Import/Export Mismatch or Load Failure     *
*                                                                              *
********************************************************************************

       Module        File Time Stamp    Link Time Stamp    File Size  Attr.  Link Checksum  Real Checksum  CPU  Subsystem  Symbols  Preferred Base  Actual Base  Virtual Size  Load Order  File Ver       Product Ver    Image Ver  Linker Ver  OS Ver  Subsystem Ver
-----  ------------  -----------------  -----------------  ---------  -----  -------------  -------------  ---  ---------  -------  --------------  -----------  ------------  ----------  -------------  -------------  ---------  ----------  ------  -------------
[ ? ]  NDIS.SYS      Error opening file. The system cannot find the file specified (2).
[   ]  BOOTVID.DLL   10/06/2011  4:35a  10/06/2011  2:35p     11,360  A      0x0000C7AA     0x0000C7AA     x86  Native     DBG      0x80010000      Unknown      0x00002C60    Not Loaded  5.0.2172.3     5.0.2172.3     5.0        5.12        5.0     5.0
[   ]  E1D5032.SYS   11/29/2014  2:23p  01/16/2013  5:24p    224,008  A      0x00038535     0x00038535     x86  Native     CV       0x00010000      Unknown      0x00039000    Not Loaded  12.5.18.0      5.2.3790.1830  5.2        7.10        5.2     5.2
[   ]  HAL.DLL       03/21/2016 10:40a  07/10/2012  8:51p     92,544  A      0x00019FA8     0x00019FA8     x86  Native     None     0x80010000      Unknown      0x00016980    Not Loaded  5.0.2195.7011  5.0.2195.7011  5.0        5.12        5.0     5.0
[   ]  NTOSKRNL.EXE  08/12/2014  8:53p  12/06/2012  2:00a  1,784,000  A      0x001C122A     0x001C122A     x86  Native     DBG      0x00400000      Unknown      0x001B38C0    Not Loaded  5.0.2195.7394  5.0.2195.7394  5.0        5.12        5.0     5.0

************************************| Log |*************************************

Error: At least one required implicit or forwarded dependency was not found.

I tried XP OS, “Have Disk” returned “no compatible hardware found” when directed to the Driver folder INFs.

Link to comment
Share on other sites

1 hour ago, bluebolt said:

I don’t know Dependency Walker, maybe I can attach here…

e1d5032.dwi

...or if not, then

  Reveal hidden contents

*****************************| System Information |*****************************

Dependency Walker:       2.1.3623 (32-bit)
Operating System:        Microsoft Windows 2000 Professional (32-bit)
OS Version:              5.00.2195 Service Pack 4
Processor:               x86 Family 6 Model 15 Stepping 2, GenuineIntel, ~2999MHz
Number of Processors:    8, Mask: 0x000000FF
Computer Name:           BLUEBOLT-07A21C
User Name:               Administrator
Local Date:              Wednesday, March 30, 2016
Local Time:              7:47:43 AM Central Standard Time (GMT-06:00)
OS Language:             0x0409: English (United States)
Memory Load:             18%
Physical Memory Total:   1,530,146,816 (1460 MB)
Physical Memory Used:    282,066,944
Physical Memory Free:    1,248,079,872
Page File Memory Total:  4,294,967,295
Page File Memory Used:   0
Page File Memory Free:   4,294,967,295
Virtual Memory Total:    2,147,352,576
Virtual Memory Used:     47,783,936
Virtual Memory Free:     2,099,568,640
Page Size:               0x00001000 (4,096)
Allocation Granularity:  0x00010000 (65,536)
Min. App. Address:       0x00010000 (65,536)
Max. App. Address:       0x7FFEFFFF (2,147,418,111)

********************************| Search Order |********************************
*                                                                              *
* Legend: F  File                     E  Error (path not valid)                *
*                                                                              *
********************************************************************************

A user defined directory
   [  ] C:\Documents and Settings\Administrator\My Documents\PRO2k v3\APPS\PROSETDX\Win32\DRIVERS\
Side-by-Side Components (Windows XP only)
The system's "KnownDLLs" list
   [F ] c:\winnt\system32\ADVAPI32.DLL
   [F ] c:\winnt\system32\COMCTL32.DLL
   [F ] c:\winnt\system32\COMDLG32.DLL
   [F ] c:\winnt\system32\CRYPT32.DLL
   [F ] c:\winnt\system32\GDI32.DLL
   [F ] c:\winnt\system32\IMAGEHLP.DLL
   [F ] c:\winnt\system32\KERNEL32.DLL
   [F ] c:\winnt\system32\LZ32.DLL
   [F ] c:\winnt\system32\MPR.DLL
   [F ] c:\winnt\system32\MSASN1.DLL
   [F ] c:\winnt\system32\MSVCRT.DLL
   [F ] c:\winnt\system32\NTDLL.DLL
   [F ] c:\winnt\system32\OLE32.DLL
   [F ] c:\winnt\system32\OLEAUT32.DLL
   [F ] c:\winnt\system32\OLECLI32.DLL
   [F ] c:\winnt\system32\OLECNV32.DLL
   [F ] c:\winnt\system32\OLESVR32.DLL
   [F ] c:\winnt\system32\OLETHK32.DLL
   [F ] c:\winnt\system32\RPCRT4.DLL
   [F ] c:\winnt\system32\SHELL32.DLL
   [F ] c:\winnt\system32\SHLWAPI.DLL
   [F ] c:\winnt\system32\URL.DLL
   [F ] c:\winnt\system32\URLMON.DLL
   [F ] c:\winnt\system32\USER32.DLL
   [F ] c:\winnt\system32\VERSION.DLL
   [F ] c:\winnt\system32\WININET.DLL
   [F ] c:\winnt\system32\WLDAP32.DLL
   [F ] c:\winnt\system32\WOW32.DLL
The application directory
   [  ] C:\Documents and Settings\Administrator\My Documents\PRO2k v3\PRO1000-v2\Win32\
The 32-bit system directory
   [  ] C:\WINNT\system32\
The 16-bit system directory (Windows NT/2000/XP only)
   [  ] C:\WINNT\system\
The system's root OS directory
   [  ] C:\WINNT\
The application's registered "App Paths" directories
The system's "PATH" environment variable directories
   [  ] C:\WINNT\system32\
   [  ] C:\WINNT\
   [  ] C:\WINNT\System32\Wbem\
   [  ] C:\Program Files\Intel\DMIX\

***************************| Module Dependency Tree |***************************
*                                                                              *
* Legend: F  Forwarded Module   ?  Missing Module        6  64-bit Module      *
*         D  Delay Load Module  !  Invalid Module                              *
*         *  Dynamic Module     E  Import/Export Mismatch or Load Failure      *
*                               ^  Duplicate Module                            *
*                                                                              *
********************************************************************************

[   ] E1D5032.SYS
     [   ] NTOSKRNL.EXE
          [ ^ ] HAL.DLL
          [   ] BOOTVID.DLL
               [ ^ ] NTOSKRNL.EXE
               [ ^ ] HAL.DLL
     [   ] HAL.DLL
          [ ^ ] NTOSKRNL.EXE
     [ ? ] NDIS.SYS

********************************| Module List |*********************************
*                                                                              *
* Legend: D  Delay Load Module   ?  Missing Module           6  64-bit Module  *
*         *  Dynamic Module      !  Invalid Module                             *
*                                E  Import/Export Mismatch or Load Failure     *
*                                                                              *
********************************************************************************

       Module        File Time Stamp    Link Time Stamp    File Size  Attr.  Link Checksum  Real Checksum  CPU  Subsystem  Symbols  Preferred Base  Actual Base  Virtual Size  Load Order  File Ver       Product Ver    Image Ver  Linker Ver  OS Ver  Subsystem Ver
-----  ------------  -----------------  -----------------  ---------  -----  -------------  -------------  ---  ---------  -------  --------------  -----------  ------------  ----------  -------------  -------------  ---------  ----------  ------  -------------
[ ? ]  NDIS.SYS      Error opening file. The system cannot find the file specified (2).
[   ]  BOOTVID.DLL   10/06/2011  4:35a  10/06/2011  2:35p     11,360  A      0x0000C7AA     0x0000C7AA     x86  Native     DBG      0x80010000      Unknown      0x00002C60    Not Loaded  5.0.2172.3     5.0.2172.3     5.0        5.12        5.0     5.0
[   ]  E1D5032.SYS   11/29/2014  2:23p  01/16/2013  5:24p    224,008  A      0x00038535     0x00038535     x86  Native     CV       0x00010000      Unknown      0x00039000    Not Loaded  12.5.18.0      5.2.3790.1830  5.2        7.10        5.2     5.2
[   ]  HAL.DLL       03/21/2016 10:40a  07/10/2012  8:51p     92,544  A      0x00019FA8     0x00019FA8     x86  Native     None     0x80010000      Unknown      0x00016980    Not Loaded  5.0.2195.7011  5.0.2195.7011  5.0        5.12        5.0     5.0
[   ]  NTOSKRNL.EXE  08/12/2014  8:53p  12/06/2012  2:00a  1,784,000  A      0x001C122A     0x001C122A     x86  Native     DBG      0x00400000      Unknown      0x001B38C0    Not Loaded  5.0.2195.7394  5.0.2195.7394  5.0        5.12        5.0     5.0

************************************| Log |*************************************

Error: At least one required implicit or forwarded dependency was not found.

I tried XP OS, “Have Disk” returned “no compatible hardware found” when directed to the Driver folder INFs.

I said you should fix "Options > Dll Search Order" on Dependency Walker (Add drivers folder).

Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
