ruthan

Unraid VM and Win98SE - GPU passthrough.

13 posts in this topic

Hello,
i just wonder if someone tried Unraid - QEMU virtual machine with GPU Passthrought, is working well for WinXP 32bit gaming with old Geforce 8400GS with Z68 board and Core i5 2500S - it would work with everything with IOMMU support (Intel VT-d).

  Unraid is primary for big custom Raids, but has Virtual machines plugin which is based on KVM, so PCI-E and PCIE and USB devices passthrough is possible and few VMs can runs in parallel.

0

Share this post


Link to post
Share on other sites

Posted (edited)

I did some testing is possible to install Win98SE - with VNC display driver, i ended stuck at Keyboard and Mouse detection, after real GPU was used (i used integrated Intel HD2000, because i hadnt at the hand any Win98 compatible card and ATI Mach 64 VT wasnt working with Unraid) - so GPU passthrough working even for Win98.

   Keyboard / mouse problem probably can be solved with PS2 keyboard and mouse or 2 PS ports mianboard or more compatible USB devices - i dont have at home best set for compatbility i have some too modern and not good keyboard for compatibility (nothing like old Logitech, Chicony IBM keyboards). I tested all through some 1xPS2 to 2x USB convertor.

Edited by ruthan
0

Share this post


Link to post
Share on other sites

Can you please state the source and version of UnRaid you are using? (is it the Demo Donwload from the Homepage?)

I see that Q35 chipset is emulated - and we have drivers/inf for P35, so that *may* work.

0

Share this post


Link to post
Share on other sites

I have using last version from website - 14 days trial, but it could be extended, because its tight only to unique email address.

 QEMU has also i thing 440BX chipset option, which is probably even more compatible.

 There is Unraid Win98 thread, not too much info, but atleast for someone its working, only with some startup sequence hassle..
https://forums.lime-technology.com/topic/43505-vm-help-windows-98se/

0

Share this post


Link to post
Share on other sites

Posted (edited)

Today i tested on my Z68 board PCI card options, but i had no luck with Creative Audigi and SB !Live and 3Com lan card, only PCI device which is detected is ATI Mach PCI video card, but when is added to machine is not booting, but i already have new Z97 board and wating for new CPU from Ebay, i will retest it. Im also looking for any other PCI videocard, some Nvidia or more modern ATI.

 Today i also ordered PCI Geforce 7950 so we will see..

 I wonder is there any Win 9x compatible USB Lan or USB Audio card because this could be solution too?
Regarding this site at least some USB Land exists:
http://www.practicallynetworked.com/networking/usbether.htm

Edited by ruthan
0

Share this post


Link to post
Share on other sites

There are both USB Lan and USB Audio Adapters. I stocked up on both.

0

Share this post


Link to post
Share on other sites

Posted (edited)

rloew: Could recommend some piece on eBay?

I just can confirm that Unraid machine with my new arrived passivelly cooled Geforce 7950 PCI-E is booting in to normal mode! I now have not time, but i will continue with more testing.

Question:
Is there some Bios setting, which could do downgrade USB3 ports for USB2? To be fully supported by Win9x or this dead end? If this is somewhere working, it still could be MB dependent, i want to know if it is worth of try, i have Gigabyte Z68 chipset board and Z97 board is ready too, i only wanting on CPU which is on the way..

 Problem is still not USB, outside of VNC mod.. In VNC mod i can boot to safe-mode and i can see that no USB controller there, what is probably why keyboard and mouse not working at all.

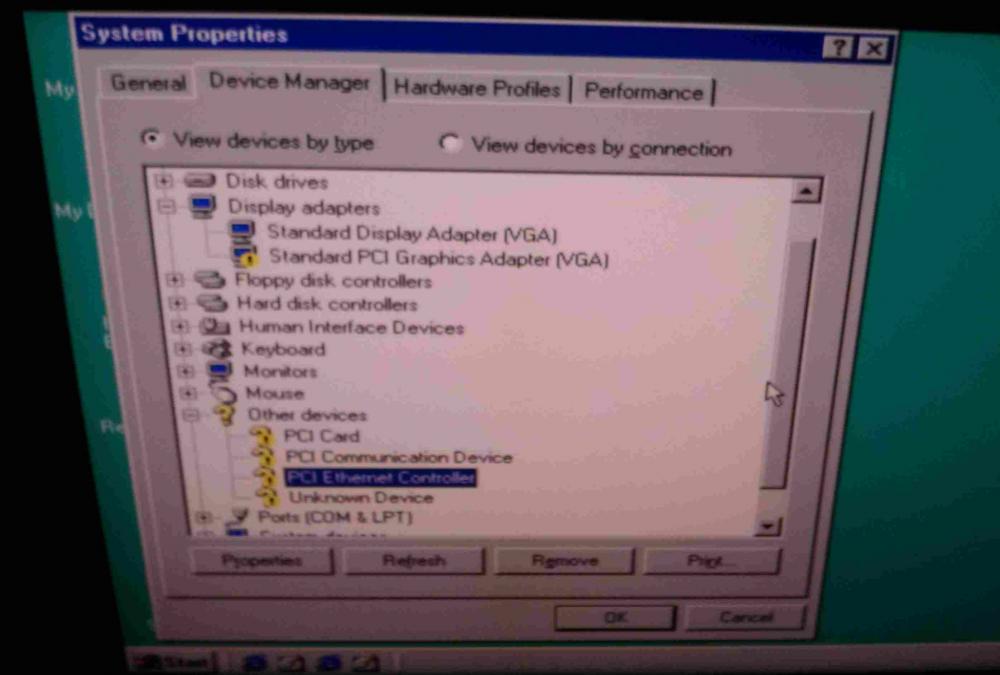

I have tried New hardware detection in safe mode, but nothing was found, but i read about some trick to rename somae PnP Bios device to PCI-BUS and some new devices were detected - even some Network adapter and USB PCI controller - problem is that somewhere is process and lost - CD/DVD devices with Windows98 mount image, so i have not drivers for that to test it.

Edited by ruthan
0

Share this post


Link to post
Share on other sites

I rarely shop online. The Adapters I mentioned are still available in stores such as Micro Center.

The USB LAN Adapter is the Tenda TEL9901G.
The USB Sound Adapter is the Kingwin USB-3DSA.

0

Share this post


Link to post
Share on other sites

Posted (edited)

rloew: Thanks.

I maked USB working, but only in normal mod, in safe mode is not working and when machine crash, is needed to control safe mode throught VNC client- its stupid, but its nothing too annoying.
I dont know, maybe its Win98 SE limitation that USB not working in same mode, problem is that as far i know, there is not QEMU PS2 device passthrough.

   So only Network and Audio is needed to make it fully working.

  I didnt test any benchmarks but its really fast with Core i5 2500S - 1 core and 256 MB RAM.


Edited by ruthan
0

Share this post


Link to post
Share on other sites

Posted (edited)

Safe Mode runs only the bare minimum of Drivers. USB is not one of them.

USB Keyboards can be used if the BIOS provides Legacy USB Keyboard support but this is mapped to the PS/2 Interface.
USB Drives may also be supported through Legacy Mode.

Edited by rloew
0

Share this post


Link to post
Share on other sites
8 hours ago, rloew said:

Safe Mode runs only the bare minimum of Drivers. USB is not one of them.

USB Keyboards can be used if the BIOS provides Legacy USB Keyboard support but this is mapped to the PS/2 Interface.
USB Drives may also be supported through Legacy Mode.

  But there is some QEMU trick how to make VNC keyboard and mouse working, maybe some similator workaround could be used for make USB working as PS2 device inside virtualization.

0

Share this post


Link to post
Share on other sites
On 26.3.2017 at 3:36 AM, rloew said:

USB LAN Adapter is the Tenda TEL9901G

Sorry, i don't seem to find an USB-Adapter of that name, just an 10/100/1000 PCI card. Do you have a link to that product?

0

Share this post


Link to post
Share on other sites

You are right. Wrong LAN Adapter.
The correct one is the Inland UED011 USB to LAN Adapter.

0

Share this post


Link to post
Share on other sites
