[Astalavista]

Can this be done?

and can u pls point me to a link on how to do it.

thank u

Attached File(s)

•  Snap1.jpg (39.67K)
  Number of downloads: 67

[Alanoll]

you want your avatar in your System Properties? I don't think you can have an animated GIF, but http://unattended.ms.../xp/oeminfo.htm that is the page to tell you what to do

[Astalavista]

got it thanks!!!

[jcarle]

That page has some incorrect information and is missing some vital information.

Incorrect Information
The dimensions stated on that page are incorrect. They are stated as 180x114. They've been stated incorrectly by Microsoft's documentation in the past. The correct dimensions for Windows XP are 172x100.

Missing Information
1) There is the requirement that the OEMLOGO.BMP file must be a Windows compliant BMP file of 256 color only.

2) The top-most, left-most pixel (0,0) of OEMLOGO.BMP is used for the color index of the bitmap transparency. What that means is that if your (0,0) pixel is black, all black in your OEMLOGO.BMP will become transparent.

To avoid any transparency, put a 1 pixel border of a different color (RGB:255,0,255 is rarely used.) around the outside of your OEMLOGO.BMP while still remaining with a total image size of no more then 172x100.

3) OEMLOGO.BMP will NOT show unless OEMINFO.INI is present as well with the minimum of

[General]

and a minimum of either

Manufacturer=(Some text, must contain at least ONE character to appear)

OR

Model=(Some text, must contain at least ONE character to appear)

The lines below are optional lines that can be included IN ADDITION TO the above minimum required:

[OEMSpecific]
SubModel=(Some text, must contain at least ONE character to appear)
SerialNo=(Some text, must contain at least ONE character to appear)
OEM1=(Some text, must contain at least ONE character to appear)
OEM2=(Some text, must contain at least ONE character to appear)

[Support Information]
Line1=(Some text, must contain at least ONE character to appear)
Line(Line Number)=(Some text, must contain at least ONE character to appear)

Hope this information helps answer any future problems you could encounter while making your OEMLOGO.BMP. And if you use photoshop with Perceptual Indexing of the colour palette with Pattern Dittering, you'll find that you can transform high quality images into very decent OEMLOGOs. Here's my example below using the following OEMINFO.INI:

[General]
Manufacturer=Customized Install

Attached File(s)

•  example.gif (31.81K)
  Number of downloads: 71

[dirtyepic]

jcarle, on Aug 16 2004, 11:28 PM, said:

The dimensions stated on that page are incorrect. They are stated as 180x114. They've been stated incorrectly by Microsoft's documentation in the past. The correct dimensions for Windows XP are 172x100.

There is the requirement that the OEMLOGO.BMP file must be a Windows compliant BMP file of 256 color only.

well, that sure is news to me. maybe it works because i didn't know it's not supposed to.

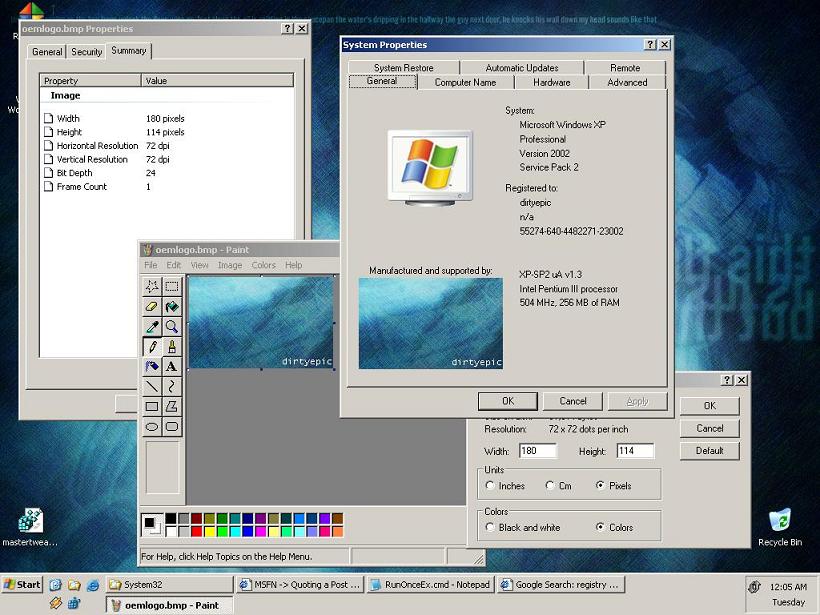

seriously though, i've had 3 oem logos, all 180x114. two worked fine and the other was cropped like that KB page describes.

*shrug*

Attached File(s)

•  oemlogo.JPG (88.58K)
  Number of downloads: 110

[dirtyepic]

ah okay:

Quote

This problem occurs in non-English versions of the operating system (OS) because of differences in display font styles and scaling.

guess i'm not so special after all

[SiMoNsAyS]

@jcarle good find man! i'll take care

[Astalavista]

dirtyepic, on Aug 17 2004, 12:17 AM, said:

jcarle, on Aug 16 2004, 11:28 PM, said:

The dimensions stated on that page are incorrect. They are stated as 180x114. They've been stated incorrectly by Microsoft's documentation in the past. The correct dimensions for Windows XP are 172x100.

There is the requirement that the OEMLOGO.BMP file must be a Windows compliant BMP file of 256 color only.

well, that sure is news to me. maybe it works because i didn't know it's not supposed to.

seriously though, i've had 3 oem logos, all 180x114. two worked fine and the other was cropped like that KB page describes.

*shrug*

dude...

your method works GREAT!!!

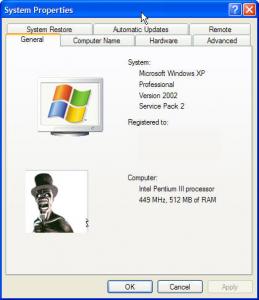

Here is mine... also made mine with 180 X 114

Attached File(s)

•  Snap1.jpg (130.49K)
  Number of downloads: 30

[SiMoNsAyS]

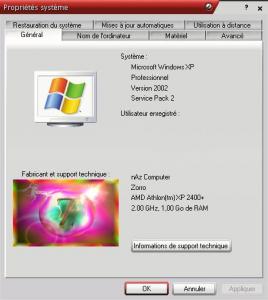

here it's mine (172x120)

[Leduc]

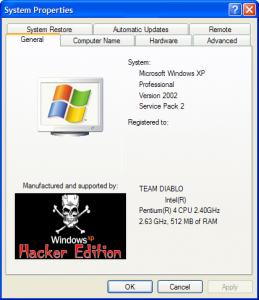

Mine: (180-114)

Attached File(s)

•  Screen.JPG (32.59K)
  Number of downloads: 36

[jcarle]

If you fill in the white of that picture of the PC with RGB(255,0,255) it will look much nicer as the background will be transparent.

[SiMoNsAyS]

jcarle, on Aug 21 2004, 08:13 PM, said:

If you fill in the white of that picture of the PC with RGB(255,0,255) it will look much nicer as the background will be transparent.

also first pixel (1,1) must be of pink color (255,0,255) and bmp must be converted to indexed color.

[Rekenaar]

@SiMoNsAyS, how did you change the picture above the oem logo?

It looks very nice!

[hellhound]

You guys are saying to turn the top left corner to the colour you want transparent; right? For me it's the bottom left corner, now thats weird.

[SiMoNsAyS]

Rekenaar, on Aug 21 2004, 10:52 PM, said:

@SiMoNsAyS, how did you change the picture above the oem logo?

It looks very nice!

GUI Replacer + 1 of this themes.

[rompom7]

hellhound, on Aug 22 2004, 01:08 AM, said:

You guys are saying to turn the top left corner to the colour you want transparent; right? For me it's the bottom left corner, now thats weird.

Me too.. :S
