Slipstreaming Windows Server 2003 R2

- - - - -

This topic has been archived. This means that you cannot reply to this topic.
10 replies to this topic


  • Member
  • 7 posts
  • Joined 20-August 04
I have a Volume License version of Windows Server 2003 with SP1 already integrated (I don't know if that was done with nlite). The question is, we have a VL version of the x86 R2. I know for a fact that it can be slipstreamed because there is a slipstream.inf in the root folder (of the R2 Disc) but the problem is, how can this be done with nlite? And what category would that go under in options? Service Packs? Hotfixes? Patches?


Edited by c4p0ne, 10 March 2006 - 06:10 AM.

How to remove advertisement from MSFN




  • Member
  • Pip
  • 89 posts
  • Joined 17-October 05
Windows Server 2003 R2 comes with SP1 integrated from Microsoft


  • Member
  • 7 posts
  • Joined 20-August 04
Whether or not that is true, it still does not answer my question. I have 1 W2K3SP1 Disc, and 1 R2 Disc. Obviously the R2 Disc is meant to be either installed directly, or slipstreamed. The R2 Disk is less then 140 Megabytes so again, it's obviously an upgrade.

The only problem is that it's not like a "single file" service pack (like SP1 for W2K3). It has a root folder with files and subfolders and the documentation says nothing about slipstreaming even though it's clear by the directory structure that it can and was meant to be done.

Its kind of frustrating but I'll keep digging. :(



    MSFN Addict

  • Member
  • PipPipPipPipPipPipPip
  • 1,732 posts
  • Joined 22-May 05

Windows Server 2003 R2 comes with SP1 integrated from Microsoft

R2 is not a full OS as it should have been.
(Release number 2)

c4p0ne, you need to find a file named update.exe on your CD when using the Service pack option.
I only know this because I've dug into nLite translation. It's in the file selection window's title but it is so far on the right it can't be displayed.
In fact, when you select a servicepack.exe, nLite expands it and then finds the 'update.exe'. :)


  • Member
  • 7 posts
  • Joined 20-August 04
Thanks, that's useful information and in fact, I've found 6 "update.exe" files on the disk but unfortunately they seem to be for R2's "extra components" which can be installed after the R2 installation has gone well. There doesn't seem to by any update.exe file in the root directory or root of the "R2" subdir.

Funny I can't even seem to find stuff about slipstreaming R2 on MS's website! (!@*&%?). Well there is a slipstream.inf file in the root that looks like the following:

<- start ->

Signature = "$Windows NT$"
DestinationPlatform = i386
LanguageType = %Locale%
NtMajorVersionToUpdate = 5
NtMinorVersionToUpdate = 2

SKU = ia

Locale = 0x00000409

<- end ->

I just can't figure this out and what kills me is that I'm sure the integration is something almost rediculously simple to do.

Innocent Devil

Innocent Devil

    Senior Member

  • Member
  • PipPipPipPip
  • 632 posts
  • Joined 04-February 05
I think it is like the MCE and TPC with winXP

U just have to put the R2 cd contents to the w2k3 with SP1 Disc
try,may it work
"The level of security that Vista is trying to achieve to protect video and audio is more extreme than anything the US government has ever considered necessary for protecting its most sensitive classified data."

Read Full Article @ [A Cost Analysis of Windows Vista Content Protection]

Don't be lame [Linux is NOT Windows]


  • Member
  • 1 posts
  • Joined 02-March 06

Any new ideas on this? I'd be interested as well in consolidating this down to one disc.




  • Member
  • Pip
  • 83 posts
  • Joined 23-February 04

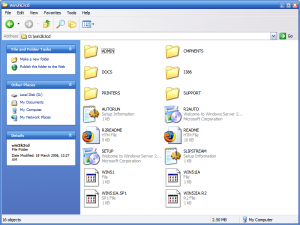

what i did is extract the root of CD2 into the root of CD1 so that so that WIN52IA.R2 is with the other ID files (Along with the other files and folders, overwrite any files it says, (only two autorun.ini and one other), when it is installed just click next on the R2 install box that appears and then it will continue ,the ISO is just under 700MB (695MB) and fits on one 80min CDR, no idea how to install the R2 components unattended :(

Attached File  R2_Slipstream.png   69.56KB   165 downloads

Edited by Lemonzest, 17 March 2006 - 06:29 PM.

AMD Athlon64 3000+ @2.4GHz, DFI Lanparty UT NF3 250Gb, 2x1024MB Geil Value Ram PC3200
ATI Radeon X800XT VIVO, SyncMaster 913N LCD, Logitech MX518, Creative Audigy2 ZS
Enermax Noisetaker 485W, Western Digital SATA 160GB, Windows Server 2003 R2 Standard




  • Member
  • PipPip
  • 125 posts
  • Joined 23-February 05
Hi There,

I have started a new Thread in the Unattended Section regarding this issue. I am trying to get the same thing. I have done extensive testing the last few days and hopefully some of the information can help us all work together to figure this out.

I know we are so close I can taste it but there is something we are overlooking! I am DETERMINED to figure it out! :thumbup

New Thread On This Topic
EVGA 680I MB, Intel Core 2 Duo 6600 @ 3.5 Ghz, 2 x EVGA 7800 GTX (256 MB) PCI-E (SLI Configuration), Sound Blaster X-FI Music, 4 GB (4x 1024MB) OCZ PC-2 6400 Gold XTC Memory, 2 x Raptor 74 Gb RAID-0, 2 x Seagate 500 GB SATA (1TB RAID), Dell 24" Widescreen LCD Panel & Dell 22" Widescreen LCD Panel (Dual View), Pioneer DVD-RW, Zalman 9500-Cu CPU Cooler, Antec Sonata II Case.




  • Member
  • PipPipPipPipPip
  • 944 posts
  • Joined 21-August 06
R2 is not an OS, its a bundle of tools for large scale managing of network systems.
You have Server 2003 SP1 + R2 in the case. 2 Separate CDs. Its an addon pack.
Theres no such thing as Server 2003 R2. Its just server 2003 with R2.

More info: http://www.winsupers.../win2003_r2.asp
Look on the site. Lists all the tools it comes with. Ironically, they are also tools you will never use unless you run a large, complex network.

R2 is primarily designed to combine the gold version of Windows Server 2003 with Windows Server 2003 Service Pack 1 (SP1) and the various out-of-band updates, now called Feature Packs, that Microsoft has shipped since Windows 2003 was first released. According to Microsoft, these Feature Packs include:

Active Directory Application Mode (ADAM). A light run-time mode for Active Directory designed specifically for deploying secure, directory-based applications.
Automated Deployment Services (ADS). A set of Microsoft imaging tools designed to help you rapidly deploy Windows 2000 Server and Windows Server 2003 remotely onto bare-metal servers. ADS also features a remote script execution framework that helps administrators perform script-based management tasks on hundreds of servers as easily as they once did on a single server.
DSML Services for Windows (DSML). Enables Active Directory access using SOAP over HTTP.
Identity Integration Feature Pack (IIFP). Manages identities and user details across Active Directory, Active Directory Application Mode (ADAM), Microsoft Exchange 2000 Server, and Exchange Server 2003 environments.
Remote Control Add-on for Active Directory Users and Computers. An add-on that adds the option to right-click a computer account in the Active Directory MMC and choose Remote Control on that computer by opening a Terminal/Remote Desktop connection to that computer.
Services for NetWare 5.02 SP2. A cumulative set of updates and services that have been offered since the release of Services for Netware 5.01 SP 1.
Shadow Copy Client. A client update that lets Windows versions earlier than Windows Server 2003 take advantage of the intelligent file storage capabilities of the Shadow Copies of Shared Folders feature.
Windows Rights Management Services (Windows RMS). An information protection technology that works with RMS-enabled applications to help safeguard digital information from unauthorized useâ€â€￾both online and offline, inside and outside of the firewall.
Windows Rights Management Services Client. The client code for Windows RMS.
Windows SharePoint Services. A powerful Web-based team collaboration environment. The R2 version will include TrustBridge compatibility for sharing information with partner companies and customers.
Windows System Resource Manager (WSRM). Provides resource management and enables the allocation of resources among multiple applications based on business priorities.

Edited by brucevangeorge, 04 April 2007 - 11:31 AM.

If you like to waste money on junk, then buy a CREATIVE® product.

E8400 | P45 | HD4870



    reverse engineering guru

  • Member
  • PipPipPip
  • 331 posts
  • Joined 19-October 06
I keep R2 files added to the same ISO as Windows Server 2003, as well in my distribution share.

Look at Part 1 in my OEM guide, there are screenshots there when I do this with SBS R2.
