nLite problem Lose Chinese Characters Rate Topic: -----

#1 User is offline   Temps

  • Group: Members
  • Posts: 3
  • Joined: 26-July 05

  Posted 10 February 2007 - 11:07 AM

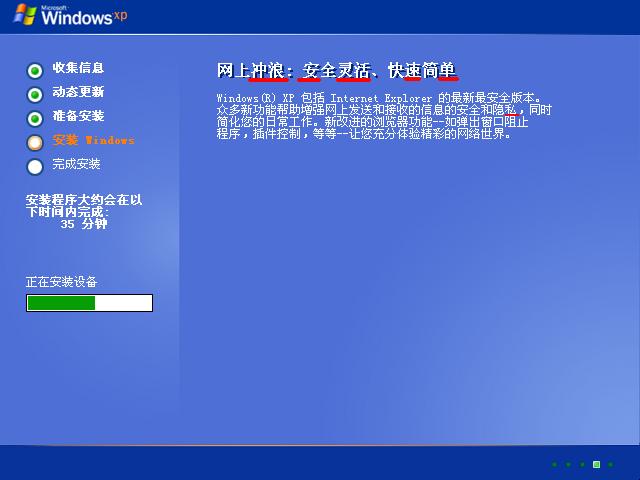

Before nLite
Attached File  __22797___20214__01C.JPG (29.2K)
Number of downloads: 30

After nLite
Attached File  __22797___20214__01E.JPG (26.6K)
Number of downloads: 29

Last_Session
Attached File  Last_Session.ini (18.98K)
Number of downloads: 9


#2 User is offline   nuhi

  • ON PAUSE - nLite & vLite human.dll
  • Group: Developers
  • Posts: 4,299
  • Joined: 25-October 03

Posted 12 February 2007 - 04:10 PM

I would bet on the hotfixes. Not blaming them directly.
For start you're integrating IE7 hotfix then IE7, that's bad but I don't think it is only that problem...anyway try first that
IE7-KB929969-WindowsXP-x86-chs.exe
IE7-WindowsXP-x86-chs.exe
should be
IE7-WindowsXP-x86-chs.exe
IE7-KB929969-WindowsXP-x86-chs.exe

Also if you still experience the same issue try removing hotfixes from the list until you find which it is...remove half then half of half...that way you'll find it fast.

Then I'll check and fix, I don't have Chinese Windows nor all those hotfixes to help you other way.

#3 User is offline   Temps

  • Group: Members
  • Posts: 3
  • Joined: 26-July 05

Posted 13 February 2007 - 06:15 AM

View Postnuhi, on Feb 13 2007, 06:10 AM, said:

I would bet on the hotfixes. Not blaming them directly.
For start you're integrating IE7 hotfix then IE7, that's bad but I don't think it is only that problem...anyway try first that
IE7-KB929969-WindowsXP-x86-chs.exe
IE7-WindowsXP-x86-chs.exe
should be
IE7-WindowsXP-x86-chs.exe
IE7-KB929969-WindowsXP-x86-chs.exe

Also if you still experience the same issue try removing hotfixes from the list until you find which it is...remove half then half of half...that way you'll find it fast.

Then I'll check and fix, I don't have Chinese Windows nor all those hotfixes to help you other way.


I tried without hotfixes, but still experience the same issue.
[Main]
Env = 1.3 RC 2 - 2.0.50727.42.Microsoft Windows NT 5.1.2600 Service Pack 2
Target = Windows XP Professional SP:2 - 5.1.2600.2180 - Chinese (PRC)

[Tasks]
Options

[Components]
;# Compatibility #

[KeepFiles]
msconfig.exe

[RemoveFiles]
clock.avi

[Options]
ProfilesDir = "%SystemDrive%\Documents and Settings"
TargetPath = "WINDOWS"
temp_dir = %USERPROFILE%\Local Settings\Temp
AdvTweaks

[Patches]
TcpIp = 100
DoUxTheme
DoSFC

[Services2]

[Tweaks]

[Unattended]
ComputerType = Default
MaximumDataStorePercentOfDisk = 12
RestorePointLife = 30
DesktopTheme = Default||
AutoUDay = 5
AutoUHour = 15
ProgFilesPath = "\Program Files"

[NetAdapter1]
connname = ""
macaddress = ""
ipaddress = "192.168.0.1"
subnetmask = "255.255.255.0"
defaultgateway = ""
dnsserver1 = ""
dnsserver2 = ""
winsserver = ""
netbiossetting = "0"
ipxnetworknumber = "00000000"
ipxnetworkframetype = "0xFF"

[GuiRunOnce]

[Drivers]

[Hotfixes]



But someone told me another way:
Find "simsun.ttc,,,65536" in INTL.INF, delete it or replace with ";simsun.ttc,,,65536".

Tested work.

The original ISO has the line "simsun.ttc,,,65536" too.
I don't know why.

#4 User is offline   nuhi

  • ON PAUSE - nLite & vLite human.dll
  • Group: Developers
  • Posts: 4,299
  • Joined: 25-October 03

Posted 13 February 2007 - 11:20 AM

But in that last preset you don't do anything...this must be that INTL.INF signature problem.
I'm glad you found the solution.

#5 User is offline   gskening

  • Newbie
  • Group: Members
  • Posts: 14
  • Joined: 25-January 07

Posted 05 March 2007 - 05:57 AM

open intl.inf and del

SIMSUN.TTC,,,65536

OK!

#6 User is offline   gaelon

  • Group: Members
  • Posts: 8
  • Joined: 16-June 09

Posted 16 June 2009 - 08:10 AM

View PostTemps, on Feb 13 2007, 08:15 PM, said:

View Postnuhi, on Feb 13 2007, 06:10 AM, said:

I would bet on the hotfixes. Not blaming them directly.
For start you're integrating IE7 hotfix then IE7, that's bad but I don't think it is only that problem...anyway try first that
IE7-KB929969-WindowsXP-x86-chs.exe
IE7-WindowsXP-x86-chs.exe
should be
IE7-WindowsXP-x86-chs.exe
IE7-KB929969-WindowsXP-x86-chs.exe

Also if you still experience the same issue try removing hotfixes from the list until you find which it is...remove half then half of half...that way you'll find it fast.

Then I'll check and fix, I don't have Chinese Windows nor all those hotfixes to help you other way.




......................

[Drivers]

[Hotfixes][/code]


But someone told me another way:
Find "simsun.ttc,,,65536" in INTL.INF, delete it or replace with ";simsun.ttc,,,65536".

Tested work.

The original ISO has the line "simsun.ttc,,,65536" too.
I don't know why.



i met the same problem when using nlite 1.4.9.1 to integrate intel raid drivers. Some Chinese characters can not be displayed correctly during the installation. I copy the original intl.inf and font.in_ to the directory I386, the problem is solved. I don't know the reason. I have checked the two intl.inf and font.in_, the differences between them are just some words begining with semicolon which shoud be ignored. i can draw a conclusion that basically these two files are same. Why same config files cause different results?


I think it may be a bug of nlite.

any suggestions? thanks a lot.

This post has been edited by gaelon: 16 June 2009 - 10:52 AM


#7 User is offline   johnhc

  • MSFN Junkie
  • PipPipPipPipPipPipPipPipPip
  • Group: Members
  • Posts: 3,246
  • Joined: 02-March 08
  • OS:Windows 7 x64
  • Country: Country Flag

Posted 16 June 2009 - 09:14 AM

gaelon, please attach the files and we will take a look. Enjoy, John.

#8 User is offline   gaelon

  • Group: Members
  • Posts: 8
  • Joined: 16-June 09

Posted 16 June 2009 - 10:08 AM

View Postjohnhc, on Jun 16 2009, 11:14 PM, said:

gaelon, please attach the files and we will take a look. Enjoy, John.

which files?
font.in_ & intl.inf?
The attachement contains four files: font.orig.in_ intl.orig.inf font.in_ and intl.inf. The files whose name contain orig are just copied from the original iso img(winxp with sp3 msdn edition), and the other two are copied from the working directory just being processed by nLite.

what i do is just using nLite to integrate intel ICH10R raid & sata drivers. after make the iso files, i test it in the virtual machines, i met the same problem as mentioned by Temps. During the installation, some Chinese characters in titles(big size) can't be displayed. Although these words are just used for the introducion of Window XP, it is still a problem and i don't know whether this affects the system further or not.

After reading some posts in Chinese technical forums, i found that many people meet the same problem. and i got one method to solove this problem, just delete such a line" simsun.ttc,,,65536" in intl.inf.
and copy the two original files to the working directory also works.

i really hope to get an official solution. thanks a lot.
Glad to get any further contacts.

Attached File(s)



#9 User is offline   johnhc

  • MSFN Junkie
  • PipPipPipPipPipPipPipPipPip
  • Group: Members
  • Posts: 3,246
  • Joined: 02-March 08
  • OS:Windows 7 x64
  • Country: Country Flag

Posted 16 June 2009 - 12:11 PM

gaelon, we need to see your Last Session.ini (please attach - not paste), and know more about your original Windows CD. You said the file differed only by lines with a ; in front, but the files are considerably different in size. I am running XP x64 and compared my original files to your original files and found that yours are considerable larger than mine. I also DLed font.inf (Version: 5.1.2600.0) and intl.inf from here and they are also larger than yours. Is your source a language different from ENU? Were any Service Packs slipped into the source before you got it? Enjoy, John.

#10 User is offline   gaelon

  • Group: Members
  • Posts: 8
  • Joined: 16-June 09

Posted 16 June 2009 - 10:47 PM

Last Session.ini is attached.

The original is just an msdn edition with sp3 (zh-hans_windows_xp_professional_with_service_pack_3_x86_cd_vl_x14-74070, with sha1sum: d142469d0c3953d8e4a6a490a58052ef52837f0f). I don't make anychange to it before. It's an official editon from Microsoft. I have test the original iso files in virtual machine, there is no such problem.

I said that they are basically same, just because the differences between them are the original files have some words or sentences beginning with semicolon and the changed files don't have these. So these two files have different size. But the words beginning with a semicolon don't have any effect and be ignored by the install program, right? Then why the same config files get the different results.

I have check the font.inf you metioned, it's different from zh-hans editon, this file is lack of Chinese fonts config lines, such as simsun.ttc.

Attached File(s)



#11 User is online   Kelsenellenelvian

  • WPI Guru
  • Group: Developers
  • Posts: 7,754
  • Joined: 18-September 03
  • OS:Windows 7 x64
  • Country: Country Flag

Posted 16 June 2009 - 10:58 PM

Quote

zh-hans_windows_xp_professional_with_service_pack_3_x86_cd_vl_x14-74070


THAT is not an OFFICIAL MSDN version. A simple google search told me it is a widely spread warez version...

#12 User is offline   gaelon

  • Group: Members
  • Posts: 8
  • Joined: 16-June 09

Posted 17 June 2009 - 06:59 AM

View PostKelsenellenelvian, on Jun 17 2009, 12:58 PM, said:

Quote

zh-hans_windows_xp_professional_with_service_pack_3_x86_cd_vl_x14-74070


THAT is not an OFFICIAL MSDN version. A simple google search told me it is a widely spread warez version...


It's an official MSDN version. And it can be checked here: https://msdn.microsoft.com/zh-cn/subscripti...ds/default.aspx

sha1 value is the same as i mentioned above.

Attached File(s)


This post has been edited by gaelon: 17 June 2009 - 07:01 AM


#13 User is offline   gamehead200

  • SEARCH!!! SEARCH!!!
  • Group: Super Moderator
  • Posts: 7,019
  • Joined: 02-September 02
  • OS:Windows 7 x64
  • Country: Country Flag

Posted 17 June 2009 - 07:09 AM

View PostKelsenellenelvian, on Jun 17 2009, 12:58 AM, said:

Quote

zh-hans_windows_xp_professional_with_service_pack_3_x86_cd_vl_x14-74070


THAT is not an OFFICIAL MSDN version. A simple google search told me it is a widely spread warez version...
You do realize that software is sometimes leaked straight from MSDN without the filename(s) being changed, right? :whistle: And anyways, gaelon proved that he got it from MSDN. ;)

#14 User is online   Kelsenellenelvian

  • WPI Guru
  • Group: Developers
  • Posts: 7,754
  • Joined: 18-September 03
  • OS:Windows 7 x64
  • Country: Country Flag

Posted 17 June 2009 - 07:11 AM

I got confused by the "zh-hans" I do apologize to the falsely accused.

@ galeon = I am very sorry.

This post has been edited by Kelsenellenelvian: 17 June 2009 - 07:15 AM


#15 User is offline   gaelon

  • Group: Members
  • Posts: 8
  • Joined: 16-June 09

Posted 17 June 2009 - 08:23 AM

View PostKelsenellenelvian, on Jun 17 2009, 09:11 PM, said:

I got confused by the "zh-hans" I do apologize to the falsely accused.

@ galeon = I am very sorry.


i think that "zh-hans" is equal to"zh_CN", and zh_CN is used more often.

And i don't know what you mean for the last two sentences, sorry for my poor English.

#16 User is offline   gaelon

  • Group: Members
  • Posts: 8
  • Joined: 16-June 09

Posted 17 June 2009 - 08:30 AM

View Postgamehead200, on Jun 17 2009, 09:09 PM, said:

View PostKelsenellenelvian, on Jun 17 2009, 12:58 AM, said:

Quote

zh-hans_windows_xp_professional_with_service_pack_3_x86_cd_vl_x14-74070


THAT is not an OFFICIAL MSDN version. A simple google search told me it is a widely spread warez version...
You do realize that software is sometimes leaked straight from MSDN without the filename(s) being changed, right? :whistle: And anyways, gaelon proved that he got it from MSDN. ;)


hehe, i just want to prove that the iso image i used is the same as official msdn edition.

#17 User is offline   johnhc

  • MSFN Junkie
  • PipPipPipPipPipPipPipPipPip
  • Group: Members
  • Posts: 3,246
  • Joined: 02-March 08
  • OS:Windows 7 x64
  • Country: Country Flag

Posted 17 June 2009 - 08:48 AM

gaelon, please see the end of this thread. I am pursuing a problem myself that appears to be a case of a commented out line in an .inf getting processed. I will let you know what I learn as I debug. Enjoy, John.

EDIT: I failed to mention that I see you are using Vista to create an XP ISO. Some report problems doing this and integrating an SP will not work at all.

This post has been edited by johnhc: 17 June 2009 - 11:29 AM


#18 User is offline   johnhc

  • MSFN Junkie
  • PipPipPipPipPipPipPipPipPip
  • Group: Members
  • Posts: 3,246
  • Joined: 02-March 08
  • OS:Windows 7 x64
  • Country: Country Flag

Posted 20 June 2009 - 03:36 PM

gaelon, the problem I was chasing turned out not to be related in any way to yours. Please see the last of this thread. If you still have a problem, please come back and let us know. Enjoy, John.

#19 User is offline   gaelon

  • Group: Members
  • Posts: 8
  • Joined: 16-June 09

Posted 22 June 2009 - 08:21 AM

View Postjohnhc, on Jun 17 2009, 10:48 PM, said:

gaelon, please see the end of this thread. I am pursuing a problem myself that appears to be a case of a commented out line in an .inf getting processed. I will let you know what I learn as I debug. Enjoy, John.

EDIT: I failed to mention that I see you are using Vista to create an XP ISO. Some report problems doing this and integrating an SP will not work at all.


In fact, i did such works under winxp sp3 in another computer.

After reading other threads, making intl.inf to intl.in_ can solve the problem?

anyway, i'll have a try. and a futher result will be post later.

#20 User is offline   johnhc

  • MSFN Junkie
  • PipPipPipPipPipPipPipPipPip
  • Group: Members
  • Posts: 3,246
  • Joined: 02-March 08
  • OS:Windows 7 x64
  • Country: Country Flag

Posted 22 June 2009 - 12:58 PM

Quote

making intl.inf to intl.in_ can solve the problem?
gaelon, this is simply compressing the file (done with makecab) and should make no difference. I'm looking again. Enjoy, John.

EDIT: I just took the original FONT.INF file and removed the same lines that nLite removed and inserted the "modified by nLite" stuff at the bottom and they (this and nLite's file) compared exactly. They are the same file. NLite has simply stripped out the blank lines and lines with a semi-colon ( ; ). This includes the line as follows:
DefaultDestDir = 20			; fonts dir
was replaced by
DefaultDestDir = 20
I don't know what the effects of removing the "; fonts dir" has, if any.

EDIT again: gaelon, I suggest you do the same with the INTL.INF file and see if they compare.

This post has been edited by johnhc: 22 June 2009 - 03:51 PM
